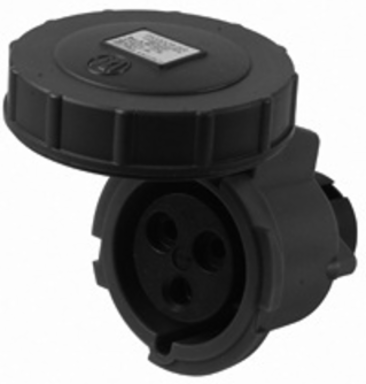

Pass & Seymour PS460C12WR Replacement Connector Body, 60A 4-Wire, 125/250V, 4.5 Inch Width
- MPN: PS460C12WR
- UPC: 785007010909
- PPN: P-S-PS460C12WR
- UNSPSC: 39121421
CAD
$258.92
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Replacement Connector Front Body, 4-Wire 60A 125/250V.
Features
- Legrand Pin & Sleeve products provide installation ease, enduring performance in harsh conditions, and guaranteed IEC 309 compatibility.
- Arrives ready to wire, with cord grip open and cable-ready. Terminal screws come backed out and ready to wire. Front and back body require no disassembly prior to assembly.
- Nylon construction for highimpact and corrosion resistance.
- Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity.
- Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated.
- Natural-rubber grommets provide watertight protection at cable entry.
- Combination-head screws for added convenience and quick installation.
- Revolutionary, hinged cord grip for durable performance and ease of installation.
- Cover with integral neoprene gasket provides watertight seal.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Height | 4.7 in |
| Product Line | Pass & Seymour |
| Application Sector | Industrial |
| Standard | UL Listed |
| Number of Wires | 4.0 |
| Connector Style | Pin & Sleeve |
| Warranty Type | 1-Year |
| Features | Watertight |
| Depth | 10.9 in |
|---|---|
| Width | 4.5 in |
| Amperage | 60.0 A |
| Number of Poles | 3-Way |
| Special Features | Impact, chemical resistant, non conductive retaining screw, brass male/female contacts |
| Voltage | 125/250 V |
| Flanged | No |
| Indoor/Outdoor | Both |
| Type | Connector |
