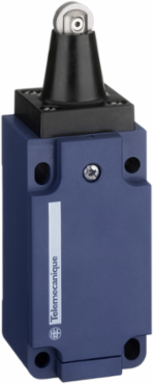

Telemecanique Sensors XCKS502H7 Limit switch, Limit switches XC Standard, XCKS, steel roller plunger, 1NC+1 NO, slow break, 1/2NPT

MPN: XCKS502H7
PPN: TES-XCKS502H7
UNSPSC: 39122213

$64.80

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Limit switch, Limit switches XC Standard, XCKS, steel roller plunger, 1NC+1 NO, slow break, 1/2NPT

Documentation & Downloads

Specifications

Key Specifications

Movement Of Operating Head	linear
Fixing Mode	by the body
Sensor Design	form C CENELEC EN 50041
Product Or Component Type	limit switch
Material	plastic
Type Of Approach	lateral approach, 2 directions
Contacts Type And Composition	1 NC + 1 NO
Contact Operation	slow-break, break before make
Device Short Name	XCKS

Range Of Product	Telemecanique Limit switches XC Standard
Type Of Operator	spring return roller plunger metal
Cable Entry	1 entry tapped for 1/2" NPT cable gland 7-13 mm
Head Material	plastic
Head Type	plunger head
Series Name	standard format
Body Type	fixed
Body Material	plastic
Number Of Poles	2

Complementary

Height	117-117 mm
Short-Circuit Protection	10 A cartridge fuse gG
Electrical Connection	screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
Net Weight	0.133 kg
Switch Actuation	by 30° cam
Electrical Durability	5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Opening	with
Mechanical Durability	15000000 cycles
Minimum Force For Tripping	12 N
Width	40 mm
[Ithe] Conventional Enclosed Thermal Current	10 A AC

Terminals Description Iso N°1	(13-14)NO \|\| (21-22)NC
Minimum Actuation Speed	6 m/min
Number Of Steps	1
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60664 \|\| 6 kV IEC 60947-1
[Ui] Rated Insulation Voltage	300 VUL 508 \|\| 500 V 3)IEC 60947-1 \|\| 300 VCSA C22.2 No 14
Positive Opening Minimum Force	20 N
Contacts Insulation Form	Zb
Maximum Actuation Speed	0.5 m/s
Contact Code Designation	A300, AC-15 (Ue = 240 V), Ie = 3 A EN/IEC 60947-5-1 appendix A \|\| Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A
Depth	37 mm
Maximum Resistance Across Terminals	25 MOhm IEC 60255-7 category 3

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP1307066
Reach Regulation	Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc	Yes
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free	Yes
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Circularity Profile	ENVEOLI1307066EN

Environment

Product Certifications	UL \|\| CCC \|\| CSA
Ambient Air Temperature For Operation	-25-70 °C
Shock Resistance	50 gn 11 ms IEC 60068-2-27
Ip Degree Of Protection	IP67 conforming to IEC 60529 \|\| IP66 conforming to IEC 60529
Overvoltage Category	class II IEC 61140 \|\| class II NF C 20-030
Protective Treatment	TC

Ik Degree Of Protection	IK05 EN 50102
Standards	CENELEC EN 50041 \|\| EN 60947-5-1 \|\| IEC 60204-1 \|\| CSA C22.2 No 14 \|\| EN 60204-1 \|\| IEC 60947-5-1 \|\| UL 508
Vibration Resistance	25 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-40-70 °C
Electrical Shock Protection Class	class II IEC 61140 \|\| class II NF C 20-030
