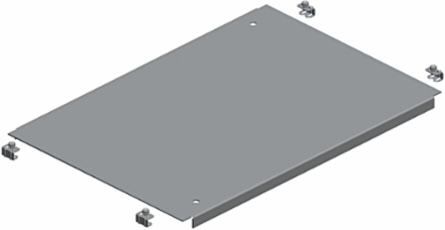

Schneider Electric NSYEC125 Plain Cable Gland Plate 1200 mm x 500 mm x 1.5 mm Galvanised Steel
Schneider Electric NSYEC125 Plain Cable Gland Plate 1200 mm x 500 mm x 1.5 mm Galvanised Steel
- MPN: NSYEC125
- PPN: SCH-NSYEC125
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$146.85/ EA
Description
Designed for versatility and durability, the plain cable gland plate from Schneider Electric is an essential accessory for effective cable management in electrical enclosures. Constructed from robust galvanised steel, this plate measures 1200 mm in width and 500 mm in depth, providing ample space for multi-purpose applications. Its fixed design, secured by clips, ensures a reliable installation at the enclosure's bottom, making it compatible with the PanelSeT SF range. With a thickness of 1.5 mm and a height of 30 mm, this cable gland plate not only meets the demands of modern electrical setups but also adheres to high standards of quality and environmental responsibility, boasting a carbon footprint of approximately 39 kg CO2 equivalent over its lifecycle.
Features
- cable gland plate, coupled with the use of the sealing gasket NSYCEK enable maximum dust/water tightness.
- Material: Galvanized steel
- Thicknesses: 15/10e mm
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 1 plate
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 13 kg CO2 eq., 12.88264487
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 24 kg CO2 eq., 23.81124919
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Cable Entry
- plain
- Energy Efficiency Optimized
- False
- Mounting Location
- enclosure bottom
- Product Availability
- Stock - Normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- Yes
- Thickness
- 1.5 mm
- Accessory Separate Part Category2
- cable management accessory
- Stocking Flag
- N
- Pep Code
- ENVPEP1109023EN
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Cable Gland Type
- standard
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A41.054890603, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A51.215102282, 1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2026-02-24
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Device Applicationmulti-purpose
Materialgalvanised steel
Package Weight Lbs5.480 kg
Product Or Component Typecable gland plate
RangePanelSeT
Sustainable PackagingNo
Total Lifecycle Carbon Footprint39 kg CO2 eq.
Medium DescPlain cable gland plate, PanelSeT SFN, Spacial SF, for electrical enclosure W1200 D500mm, fixed by clips
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; FR
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 38.96388695
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1109023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- cable gland plate
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Width
- 40 in
