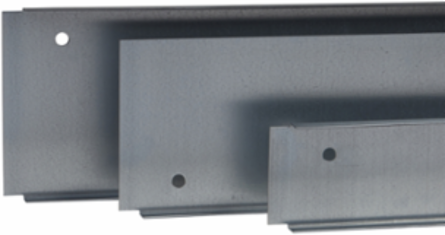

Schneider Electric NSYEC1282 Spacial SF Cable Gland Plate, 1200 x 800 mm, Galvanised Steel, 2 Entries
Schneider Electric NSYEC1282 Spacial SF Cable Gland Plate, 1200 x 800 mm, Galvanised Steel, 2 Entries
- MPN: NSYEC1282
- PPN: SCH-NSYEC1282
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$276.68/ EA
Description

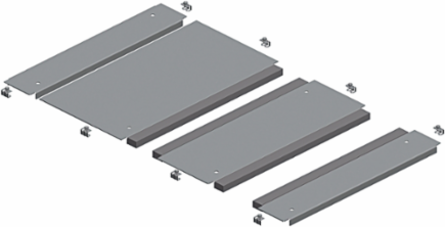

Spacial SF 2 entries cable gland plate. 1200 x 800 mm. Multi-purpose, cable management accessory. Fixed by clips. Mounting on enclosure bottom. 2 cable entries. Galvanised steel. Thickness 1.5 mm. Plate and fixing elements incl. Polyurethane adhesive gasket with cross-section of 15 x 25 mm incl.
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 1 plate, polyurethane adhesive gasket with cross-section of 15 x 25 mm
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 28 kg CO2 eq., 28.21017125
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 52 kg CO2 eq., 52.14142158
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Cable Gland Type
- standard
- Energy Efficiency Optimized
- False
- Mounting Location
- enclosure bottom
- Product Or Component Type
- cable gland plate
- Range
- PanelSeT
- Software Version
- v5.9.4
- Thickness
- 1.5 mm
- Accessory Separate Part Category
- cable management accessory
- Pep Code
- ENVPEP1109023EN
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Quantity
- 1
- Reference Lifetime In Y2
- 20
- Recyclability Potential In 2
- 98
- Pn
- 1
- Width Real
- useful: 1016 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A42.309979422, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A52.660807918, 3 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-07-10
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1912
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Cable Entry2 entries
Device Applicationmulti-purpose
Materialgalvanised steel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Total Lifecycle Carbon Footprint85 kg CO2 eq.
Warranty In Months18
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Functional Unit Unitunit
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; FR
Offer Owner Code190789
Width Nominalnominal: 1200 mm
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 85.32238017
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- cable gland plate
ETIM
- ETIM 8
- EC000211
ETIM 9EC000211
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Spain, France
Width40 in
