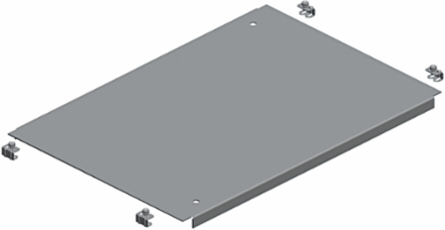

Schneider Electric NSYEC44 Cable Gland Plate 400mm x 400mm, Galvanised Steel, 1.5mm Thick
- MPN: NSYEC44
- PPN: SCH-NSYEC44
CAD
$84.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for versatility and reliability, the cable gland plate from Schneider Electric is an essential component for electrical enclosures, specifically tailored for the PanelSeT SFN and Spacial SF series. Constructed from durable galvanised steel, this plate measures 400 mm in width and depth, with a thickness of 1.5 mm, ensuring robust support for various cable management applications. Its innovative design allows for easy installation at the enclosure bottom, facilitating straightforward cable entry and organization. With a commitment to quality, this product comes with an 18-month warranty, making it a dependable choice for professionals in automation, control, and data communication sectors.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, France, United States
- Width
- 8.5 in
Height0.98 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 1 plate
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 3 kg CO2 eq., 2.543617108
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 5 kg CO2 eq., 4.70141818
- Local Data Status
- Publishable
- Return Indicator
- N
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1912
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Cable Entry
- plain
- Device Application
- multi-purpose
- Material
- galvanised steel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 8 kg CO2 eq.
- Warranty In Months
- 18
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 25 mm
- Width Nominal
- nominal: 400 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A40.208283145, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.239916181, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2026-02-24
Stocking FlagY
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Cable Gland Typestandard
Energy Efficiency OptimizedFalse
Mounting Locationenclosure bottom
Product Or Component Typecable gland plate
RangePanelSeT
Software Versionv5.9.4
Thickness1.5 mm
Accessory Separate Part Categorycable management accessory
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Recyclability Potential, In %98
Height Useful25 mm
Width Realuseful: 216 mm
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 7.693234612
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- cable gland plate
ETIM
- ETIM 8
- EC000211
ETIM 9EC000211
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
