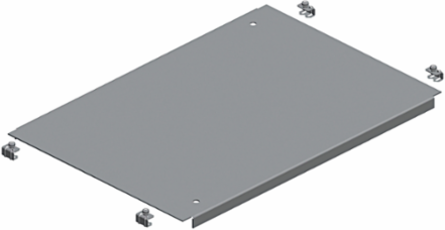

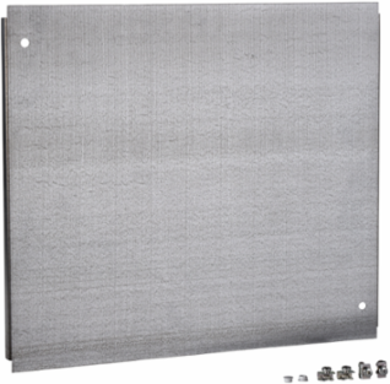

Schneider Electric NSYEC66 Plain Cable Gland Plate 600 mm Width, Galvanized Steel, 18 Months Warranty
- MPN: NSYEC66
- PPN: SCH-NSYEC66
CAD
$93.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for optimal functionality in electrical enclosures, this plain cable gland plate is an essential accessory for efficient cable management. Manufactured by Schneider Electric, it is compatible with the PanelSeT SF and SFM ranges, ensuring versatility for various electronic applications. Crafted from durable galvanized steel, this plate measures 600 mm in width and 30 mm in height, making it suitable for enclosures with dimensions of W600 D600 mm. The installation is straightforward, utilizing clips for secure mounting at the enclosure's bottom, thus facilitating easy access and organization of cables. With an 18-month warranty, this cable gland plate not only meets practical needs but also contributes to a well-structured and efficient electrical setup.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, France, United States
- Width
- 16.38 in
Height1.18 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Application
- electronic application, multi-purpose
- Carbon Footprint Of The Distribution Phase A4
- 0.602519633, 0.6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.694027398, 0.7 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-04-15
- Stocking Flag
- N
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Cable Gland Type
- standard
- Material
- galvanised steel
- Product Availability
- Stock - Normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 22 kg CO2 eq.
- Warranty In Months
- 18
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 30 mm
- Width Nominal
- nominal: 600 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Compositionfixing elements, 1 plate
Carbon Footprint Of The End Of Life Phase C1 To C47 kg CO2 eq., 7.358153
Carbon Footprint Of The Manufacturing Phase A1 To A314 kg CO2 eq., 13.6002208
Local Data StatusPublishable
Return IndicatorY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1912
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Cable Entryplain
Energy Efficiency OptimizedFalse
Mounting Locationenclosure bottom
Product Or Component Typecable gland plate
RangePanelSeT
Software Versionv5.9.4
Thickness1.5 mm
Accessory Separate Part Categorycable management accessory
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Recyclability Potential, In %98
Height Useful30 mm
Width Realuseful: 416 mm
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 22.25492083
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- cable gland plate
ETIM
- ETIM 8
- EC000211
ETIM 9EC000211
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
