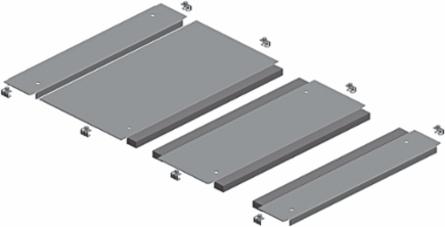

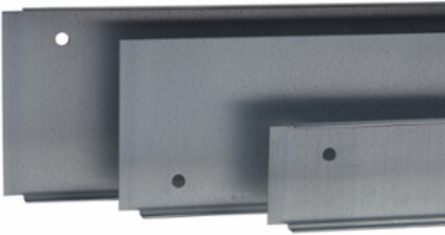

Schneider Electric NSYEC1062 Two entries cable gland plate, PanelSeT SFN, Spacial SF, for electrical enclosure W1000 D600mm, fixed by clips

Two entries cable gland plate, PanelSeT SFN, Spacial SF, for electrical enclosure W1000 D600mm, fixed by clips - https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/13de28453b530b023fd7c44293cc2cc019785eaa-medium.png

Two entries cable gland plate, PanelSeT SFN, Spacial SF, for electrical enclosure W1000 D600mm, fixed by clips

MPN: NSYEC1062
PPN: SCH-NSYEC1062

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$246.15/ EA

Qty:

Loading add to cart quantity...

Description

Spacial SF 2 entries cable gland plate. 1000 x 600 mm. Multi-purpose, cable management accessory. Fixed by clips. Mounting on enclosure bottom. 2 cable entries. Galvanised steel. Thickness 1.5 mm. Plate and fixing elements incl. Polyurethane adhesive gasket with cross-section of 15 x 25 mm incl.

Specifications

Important Information Attributes

Persona Type Ids: LC, OM, OM8, PB, SI

Market Segmentation Id: COMMERCIAL, INDUSTRIAL

Device Composition: fixing elements, 1 plate, polyurethane adhesive gasket with cross-section of 15 x 25 mm

Carbon Footprint Of The End Of Life Phase C1 To C4: 13 kg CO2 eq., 13.22351777

Carbon Footprint Of The Manufacturing Phase A1 To A3: 24 kg CO2 eq., 24.44129137

Local Data Status: Publishable

Return Indicator: Y

Weee Scope: Out

Eoli Availability Display: No need of specific recycling operations

Reach Full Compliance Status Id: CONTAINS_SVHC

Rohs Eur In Scope: No

Rohs Eur Conformity Date: 1912

China Rohs In Scope: Yes

With Recycled Cardboard: No

Product Contributes To Saved And Avoided Emissions: No

Tier: 2

Function Option: Standard

Cable Entry: 2 entries

Device Application: multi-purpose

Material: galvanised steel

Product Availability: Stock - Normally stocked in distribution facility

Quantity Per Set: set of 1

Returnability: Yes

Sustainable Packaging: No

Total Lifecycle Carbon Footprint: 40 kg CO2 eq.

Silicone Free: No

Pep Code: ENVPEP1109023EN

Pep Verification Date: 2023-03-30

Psr Version: PSR-0005-ed2-2016 03 29

Data Source: extrapolated product

Functional-unit Quantity: 1

Reference Lifetime, In Y: 20

Recyclability Potential, In %: 98

Pn: 1

Height Useful: 30 mm

Width Real: useful: 816 mm

Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator

Market SegmentationCommercial, Industrial

Carbon Footprint Of The Distribution Phase A41.082802854, 1 kg CO2 eq.

Carbon Footprint Of The Installation Phase A51.247253711, 1 kg CO2 eq.

Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0

Local Publishable Date2025-07-10

Stocking FlagN

Scope PerimeterAt least in Europe

Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold

Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold

Rohs Eur StatusCompliant By Exemption

Rohs Eur Full Compliance StatusCompliant By Exemption

China Rohs Label7

Without Single Use PlasticNo

Tier Id2

Function Option IdSTANDARD

Product Kit IdentifierN

Cable Gland Typestandard

Energy Efficiency OptimizedFalse

Mounting Locationenclosure bottom

Product Or Component Typecable gland plate

RangePanelSeT

Software Versionv5.9.4

Thickness1.5 mm

Accessory Separate Part Categorycable management accessory

Warranty In Months18

Database Version2022-01

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent internal review

Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.

Functional-unit Unitunit

Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR

Offer Owner Code190789

Height Nominal30 mm

Width Nominalnominal: 1000 mm

Environment Attributes Main

Take Back: No

China Rohs Regulation: X

Silicon Free: No

Environmental Disclosure: ENVPEP1109023EN

Packaging Made With Recycled Cardboard: No

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Pep Verification Date: 2023-03-30

Psr Version: PSR-0005-ed2-2016 03 29

Recycled Metal Content At Cr Level0 %

Mercury FreeYes

Carbon Footprint39.99486571

Eu Rohs DirectiveCompliant By Exemption

Packaging Without Single Use PlasticNo

Pep CodeENVPEP1109023EN

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type: cable gland plate

ETIM

ETIM 8: EC000211

ETIM 9EC000211

Contractual Warranty Attributes

Warranty Period: 18 months

Warranty18 months

Specifications

Country of Origin: Spain, France, United States

Width: 32.13 in

Height1.18 in
