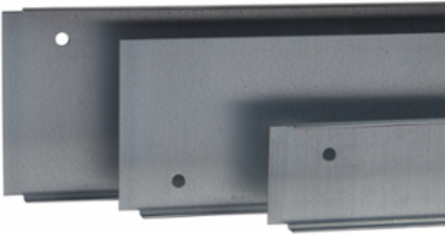

Schneider Electric NSYEC662 Cable Gland Plate 600mm x 600mm, Galvanised Steel, 2 Entries
- MPN: NSYEC662
- PPN: SCH-NSYEC662
CAD
$196.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

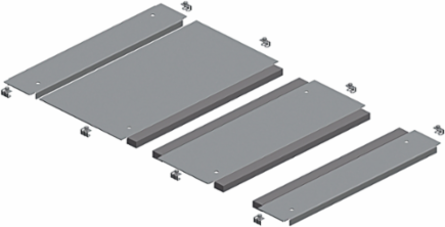

Spacial SF 2 entries cable gland plate. 600 x 600 mm. Multi-purpose, cable management accessory. Fixed by clips. Mounting on enclosure bottom. 2 cable entries. Galvanised steel. Thickness 1.5 mm. Plate and fixing elements incl. Polyurethane adhesive gasket with cross-section of 15 x 25 mm incl.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, France
- Width
- 16.38 in
Height1.18 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Application
- multi-purpose, electronic application
- Carbon Footprint Of The Distribution Phase [A4]
- 0.577494855, 0.6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.665201979, 0.7 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- Y
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Cable Gland Type
- standard
- Material
- galvanised steel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 21 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 30 mm
- Width Nominal
- nominal: 600 mm
- Accessory / Separate Part Category
- cable management accessory
- Package Weight(Lbs)
- 3.000 kg
- Take-back
- No
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Compositionfixing elements, 1 plate, polyurethane adhesive gasket with cross-section of 15 x 25 mm
Carbon Footprint Of The End-of-life Phase [C1 To C4]7 kg CO2 eq., 7.052542812
Carbon Footprint Of The Manufacturing Phase [A1 To A3]13 kg CO2 eq., 13.0353554
Local Data StatusPublishable
Return IndicatorN
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1912
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Cable Entry2 entries
Energy Efficiency OptimizedFalse
Mounting Locationenclosure bottom
Product Or Component Typecable gland plate
RangePanelSeT
Software Versionv5.9.4
Thickness1.5 mm
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Recyclability Potential, In %98
Height Useful30 mm
Width Realuseful: 416 mm
Nbr. Of Units In Pkg.1
Silicone-freeNo
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Silicon Free
- No
- Environmental Disclosure
- ENVPEP1109023EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint21.33059504
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1109023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- cable gland plate
ETIM
- ETIM 8
- EC000211
ETIM 9EC000211
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
