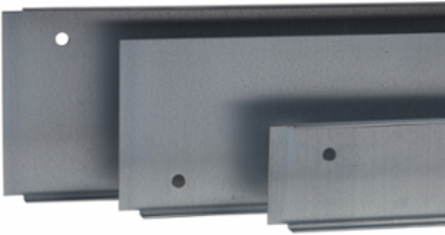

Schneider Electric NSYEC882 Spacial SF 800x800mm Two Entries Cable Gland Plate, Galvanised Steel, 1.5mm Thickness
Schneider Electric NSYEC882 Spacial SF 800x800mm Two Entries Cable Gland Plate, Galvanised Steel, 1.5mm Thickness
- MPN: NSYEC882
- PPN: SCH-NSYEC882
- UNSPSC: 39121302
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$229.28/ EA
Description

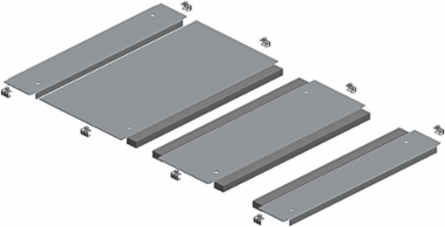

Spacial SF 2 entries cable gland plate. 800 x 800 mm. Multi-purpose, cable management accessory. Fixed by clips. Mounting on enclosure bottom. 2 cable entries. Galvanised steel. Thickness 1.5 mm. Plate and fixing elements incl. Polyurethane adhesive gasket with cross-section of 15 x 25 mm incl.
Features
- Cable entry for very deep enclosures (600 and 800 mm).
- Two longitudinal openings allowing a large number of cables through.
- Material: Galvanized steel
- Thicknesses: 15/10e mm
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Application
- electronic application, multi-purpose
- Carbon Footprint Of The Distribution Phase A4
- 1.193489368, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 1.374750757, 1 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-07-10
- Traceability
- No
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Cable Entry
- 2 entries
- Material
- galvanised steel
- Package Weight Lbs
- 6.200 kg
- Product Or Component Type
- cable gland plate
- Range
- PanelSeT
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 44 kg CO2 eq.
- Medium Desc
- Two entries cable gland plate, PanelSeT SFN, Spacial SF, for electrical enclosure W800 D800mm, fixed by clips
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; FR
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Compositionfixing elements, 1 plate, polyurethane adhesive gasket with cross-section of 15 x 25 mm
Carbon Footprint Of The End Of Life Phase C1 To C415 kg CO2 eq., 14.57525514
Carbon Footprint Of The Manufacturing Phase A1 To A327 kg CO2 eq., 26.93973449
Local Data StatusPublishable
ServiceabilityNo
Field Service DivisionPPIBS
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Energy Efficiency OptimizedFalse
Mounting Locationenclosure bottom
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Thickness1.5 mm
Accessory Separate Part Category2cable management accessory
Stocking FlagY
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit Unitunit
Cable Gland Typestandard
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 44.08322976
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1109023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- cable gland plate
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Width
- 24.25 in
Country of OriginUnited States
