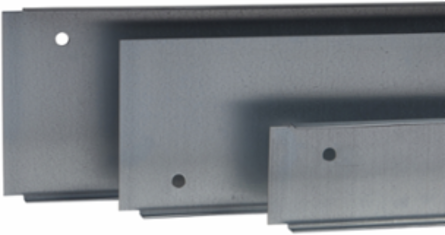

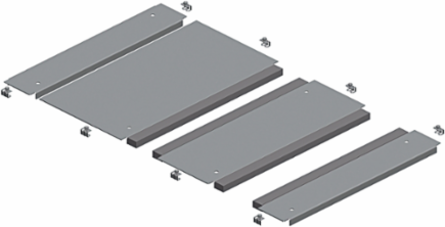

Schneider Electric NSYEC1662 Cable Gland Plate 1600 mm x 600 mm Galvanized Steel for Multi-Purpose Use
- MPN: NSYEC1662
- PPN: SCH-NSYEC1662
- UNSPSC: 39121302
CAD
$277.06
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Designed for versatility and efficiency, this cable gland plate is an essential component for electrical enclosures, specifically tailored for the PanelSeT SFN and Spacial SF ranges. Crafted from durable galvanized steel, it features a single cable entry and is fixed securely by clips, ensuring reliable performance in various applications. With dimensions of 1600 mm in width and 600 mm in depth, it provides ample space for effective cable management while maintaining a sleek profile. This product not only supports the structural integrity of your installation but also aligns with sustainability goals, boasting a total life cycle carbon footprint of 66.25 kg CO2 equivalent. Ideal for automation and control environments, this cable gland plate exemplifies quality and functionality in electrical design.
Features
- Cable entry for very deep enclosures (600 and 800 mm).
- Two longitudinal openings allowing a large number of cables through.
- Material: Galvanized steel
- Thicknesses: 15/10e mm
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|---|
| Width | 55.75 in |
| Height | 1.18 in |
|---|---|
| Weight | 9318 g |
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | fixing elements1 plate, polyurethane adhesive gasket with cross-section of 15 x 25 mm |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 22 kg CO2 eq., 21.90519797 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 40 kg CO2 eq., 40.48781386 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Cable Gland Type | standard |
| Energy Efficiency Optimized | False |
| Mounting Location | enclosure bottom |
| Product Or Component Type | cable gland plate |
| Range | PanelSeT |
| Software Version | v5.9.4 |
| Thickness | 1.5 mm |
| Database Version | 2022-01 |
| Height Nominal | 30 mm |
| Width Nominal | nominal: 1600 mm |
| Accessory / Separate Part Category | cable management accessory |
| Customs Code | 7326908688 |
| Functional Unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 98 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase A4 | 1.793699021, 2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 2.066117348, 2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-15 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1912 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Cable Entry | 1 entry |
| Device Application | multi-purpose |
| Material | galvanised steel |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Returnability | No |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 66 kg CO2 eq. |
| Data Source | extrapolated product |
| Height Useful | 30 mm |
| Width Real | useful: 1416 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Pep End Of Validity Date Calculated | 2028-03-30 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 66.2528282 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1109023EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1109023EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-03-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | cable gland plate |
|---|
ETIM
| ETIM 8 | EC000211 |
|---|---|
| ETIM 10 | EC000211 |
| ETIM 9 | EC000211 |
|---|
