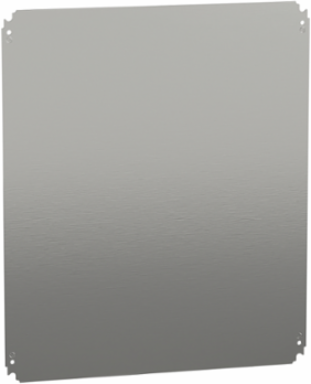

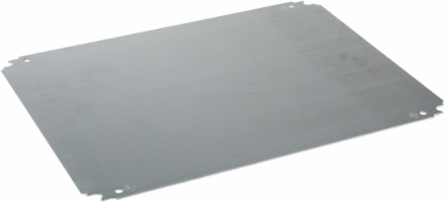

Schneider Electric NSYMM76 Plain Mounting Plate 700 x 600 mm Galvanised Steel 135 kg Load
Schneider Electric NSYMM76 Plain Mounting Plate 700 x 600 mm Galvanised Steel 135 kg Load
- MPN: NSYMM76
- PPN: SCH-NSYMM76
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$47.55/ EA
Description
Plain mounting plate for Spacial (CRN, S3D, S3X, PLM). 699 x 600 mm. Permanent permissible load 135 kg. Screwed on backstuds, screw type M8. Galvanised sheet steel.
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- - H: 700 mm W: 600 mm, - H: 700 mm W: 600 mm, - H: 700 mm W: 600 mm
- Range Compatibility
- PanelSeT S3D, PanelSeT CRN, PanelSeT PLM
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 14 kg CO2 eq., 13.978036319825621
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 26 kg CO2 eq., 26.376153934859772
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- WD Status
- 1 - GSC certified
- Function Option
- Standard
- Material
- galvanised steel
- Permanent Permissible Load
- 135 kg
- Product Or Component Type
- mounting plate
- Returnability
- No
- Total Lifecycle Carbon Footprint
- 50 kg CO2 eq.
- Pep Verification Date
- 2025-09-09
- PSR Version
- PSR-0005-ed3.1-EN-2023 12 08
- Functional Unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Product Kit Identifier
- N
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Fixing Modescrewed on backstuds M8, by fixing element
Carbon Footprint Of The Distribution Phase A49.736022440440143, 10 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.1595880629811526, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-09-16
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function Option IdSTANDARD
Energy Efficiency OptimizedFalse
Package Weight Lbs4.904 kg
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
Sustainable PackagingNo
Pep CodeENVPEP2202003EN
PCR VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit UnitUnit
Product ManagerJULES BARBALONGA
Environment Attributes Main
- EU ROHS Directive
- Compliant?, Pro-active compliance (Product out of EU RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 50.24980075810669
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2202003EN
- PCR Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
ROHS Exemption InformationYes
Reach Free SHVCYes
China ROHS RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Mercury FreeYes
Environmental DisclosureENVPEP2202003EN
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-09-09
PSR VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- mounting plate
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 25.59 in
Width21.65 in
