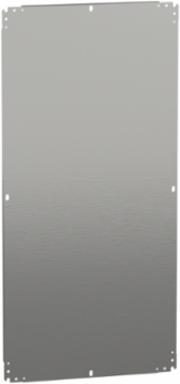

Schneider Electric NSYMM126 Galvanised Steel Mounting Plate 1200x600mm, 180kg Load Capacity
- MPN: NSYMM126
- PPN: SCH-NSYMM126
- UNSPSC: 39121323
CAD
$190.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

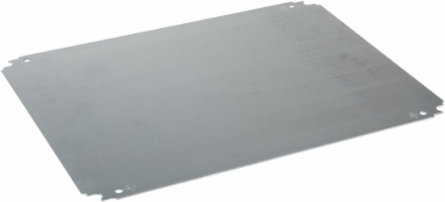

Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is1200 x W is600 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 180 Kg permissible load. Galvanised steel. Set of 1.
Features
- Reliable and sturdy design.
- Smooth surface for easy mounting.
- Fast setup.
- Ideal for industrial applications.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Spain |
|---|---|
| Width | 21.65 in |
| Height | 45.28 in |
|---|---|
| Weight | 14000 g |
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Enclosure Nominal Dimensions | - H: 1200 mm W: 600 mm, - H: 1200 mm W: 600 mm, - H: 1200 mm W: 600 mm, - H: 1200 mm W: 600 mm, - H: 1200 mm W: 600 mm, - H: 1200 mm W: 600 mm |
| Mounting Location | direct fixing on backstuds, step slide |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 40 kg CO2 eq., 39.90467138612535 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 75 kg CO2 eq., 75.2989712659129 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Mounting Plate Description | plain |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Returnability | No |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 143 kg CO2 eq. |
| Data Source | extrapolated product |

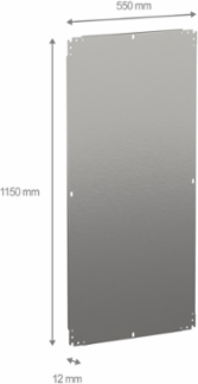

| Height Useful | 1150 mm |
| Width Real | 550 mm |
| Nbr. Of Units In Pkg. | 1 |
| Silicone Free | Yes |
| Functional Unit Description | Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years. |
| Functional Unit Unit | Unit |
| Recyclability Potential In % | 98 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Fixing Mode | screwed on backstuds M8, by fixing element |
| Carbon Footprint Of The Distribution Phase A4 | 27.794517570587686, 28 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.45559398077816815, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2025-11-06 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Device Application | multi-purpose |
| Material | galvanised steel |
| Permanent Permissible Load | 180 kg |
| Product Or Component Type | mounting plate |
| Range | PanelSeT |
| Software Version | v6.1 |
| Thickness | 1.8 mm |
| Database Version | 2023-02 |
| Height Nominal | 1150 mm |
| Width Nominal | 550 mm |
| Accessory / Separate Part Category | mounting accessory |
| Customs Code | 7326190080 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Silicon Free | Yes |
| Environmental Disclosure | ENVPEP2202003EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2202003EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 143.4537542034041 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-09-09 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | mounting plate |
|---|
ETIM
| ETIM 8 | EC000213 |
|---|---|
| ETIM 10 | EC000213 |
| ETIM 9 | EC000213 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
