Schneider Electric

Schneider Electric VW3A9805 Altivar DIN Rail Mounting Plate for Variable Speed Drives, 105mm x 144mm x 40mm

Altivar DIN Rail Mounting Plate for Variable Speed Drives, 105mm x 144mm x 40mm
  • MPN: VW3A9805
  • PPN: SCH-VW3A9805

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$56.48/ EA

    Description

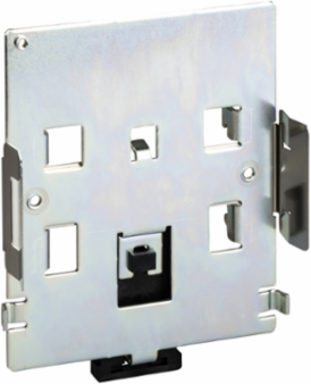

    This rail DIN kit is an option for variable speed drives of Altivar 12 range. This plate enables the mounting of your variable speed drive on 35mm symmetrical DIN rail. Its dimensions are 105mm wide, 144mm high, and 40mm deep. It weighs 0.385kg. This plate enables the mounting of your variable speed drive on 35mm symmetrical DIN rail. It is compatible with Altivar 12, Altivar 312 and Altivar Machine AT320. The ATV12 range meets basic machine requirements united with simplicity.

    Specifications

    Specifications

    Range Of Product
    Altivar
    Accessory / Separate Part Category
    mounting and fixing accessories
    Accessory / Separate Part Type
    mounting plate
    Product CompatibilityATV12HU15M2 || ATV312HU11M2 || ATV312HU11M3 || ATV312HU11N4 || ATV312HU15M2 || ATV312HU15M3 || ATV312HU15N4 || ATV312HU15S6 || ATV312HU22M3 || variable speed drive ATV320...C 1.1 kW, 200...240 V, single phase || variable speed drive ATV320...C 1.5 kW, 200...240 V, single phase || ATV12H075F1 || variable speed drive ATV320...C 2.2 kW, 200...240 V, single phase || variable speed drive ATV320...C 0.37 kW, 380...500 V, three phase || variable speed drive ATV320...C 0.55 kW, 380...500 V, three phase || variable speed drive ATV320...C 0.75 kW, 380...500 V, three phase || variable speed drive ATV320...C 1.1 kW, 380...500 V, three phase || variable speed drive ATV320...C 1.5 kW, 380...500 V, three phase || variable speed drive ATV320...C 0.75 kW, 525...600 V, three phase || variable speed drive ATV320...C 1.5 kW, 525...600 V, three phase || ATV12HU15M3 || ATV12HU22M2 || ATV12HU22M3 || ATV312H037N4 || ATV312H055N4 || ATV312H075N4 || ATV312H075S6
    Range CompatibilityAltivar 312 || Altivar 12 || Altivar 312 Solar || Altivar Machine ATV320
    Accessory / Separate Part Destinationvariable speed drive

    Offer Sustainability

    China Rohs Regulation
    X
    Mercury Free
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Rohs Exemption InformationYes
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
    Reach Free Of SvhcYes

    Complementary

    Mounting Support
    35 mm symmetrical DIN rail
    Net Weight0.385 kg

    Contractual warranty

    Warranty
    18 months
