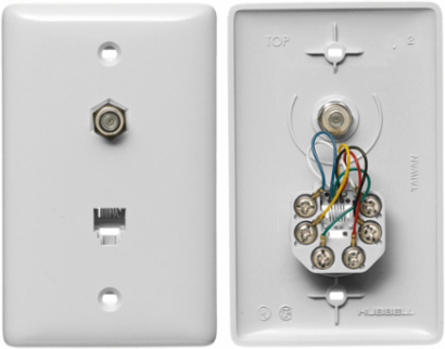

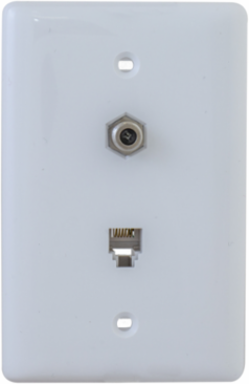

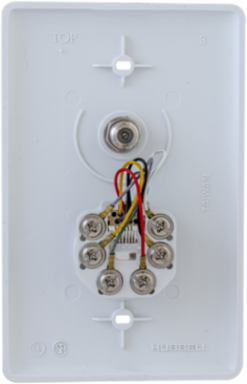

Bryant NS755W Mid Sized F Connector Wallplate, 6-Position, White, UL Listed
- MPN: NS755W
- UPC: 883778501661
- PPN: HBL-NS755W
- UNSPSC: 39121444
CAD
$10.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Plates, 1-Gang, Mid Sized, With F Connector, Jack, 6-Position 6-Conductor, White
Features
- Meets FCC part 68
- Convenient screw down terminals
- High impact-resistant thermoplastic plate
- Mid Sized
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Industry Standard(s)
- UL Listed
- Application
- Communications/CATV
- Contact Resistance
- Per TIA
- Special Features
- Mid Sized
- Temperature Rating
- Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
- Connectivity
- Female to Female and 110 IDC
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- NS755LA
- Material - Mounting Hardware
- Screw Mounting
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.450 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 14.450 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 45.200 in
- Pallet Weight
- 520.200 lb.
Width4.000 in
SizeMidsize
ColorWhite
Insertion LossPer TIA
StandardUL Listed
TypeVoice & CATV
Description - InvoicePLATE, MIDSIZE,W/F-CONN/6POS,6CON,WH
Harmonization Code8536698000
MSDS FlagNo
Sub Class CodeHPWALL2
MaterialNylon
BOX SIZE3.600x10.800x5.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack883778501661
Case - Total Units100 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70883778501660
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
