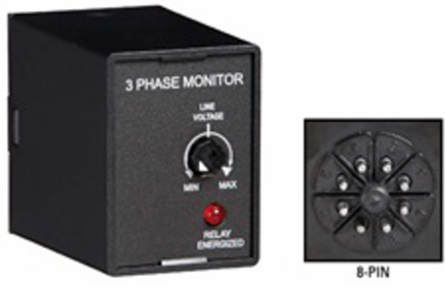

Littelfuse PLR120A PLR120A - PLR Series
- MPN: PLR120A
- UPC: 079458998009
- PPN: LTF-PLR120A
CAD
$223.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Operation The output relay is energized and the LED glows when all voltages are acceptable and the phase sequence is correct. Undervoltage must be sensed for a continuous dropout delay period before the relay de-energizes. Reset is automatic upon correction of the fault condition. The output relay will not energize if a fault condition is sensed as power is applied.
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage (V)
- 95 to 140VAC
- Input Type
- 3-phase delta or wye with no connection to neutral
- Input Phase Sequence
- ABC
- Output Type
- Electromechanical relay energized when all voltages are acceptable
- Output Load Rating (VA)
- 5A resistive @ 240VAC; 1/4hp @ 120VAC
- Drop_out Response Time (ms)
- ≤100ms Hysterisis: ≅2%
- Isolation Voltage (V)
- ≥1500V RMS input to output
- Termination Type
- Octal 8-pin plug-in
- Operating Temperature
- 0° to 55°C (32°F to 131°F)
- Dimensions
- 3.20 x 2.39 x 1.78 in. (81.3 x 60.7 x 45.2mm)
Input Voltage Maximum (V)143VAC
Input AC Line Frequency (Hz)50/60Hz
Maximum Output Voltage (V)250VAC
Output FormSPDT
Undervoltage Trip Voltage85-130VAC adjustable
Pull-in Response Time (ms)≤400ms Hysterisis≅2%
Surge ProtectionIEEE C62.41-1991 Level B
Mounting MethodPlug-in socket rated 600V
Storage Temperature (F/C)-40° to 85°C (-40°F to 185°F)
Weight (lbs/g)≅6.0oz (170g)
