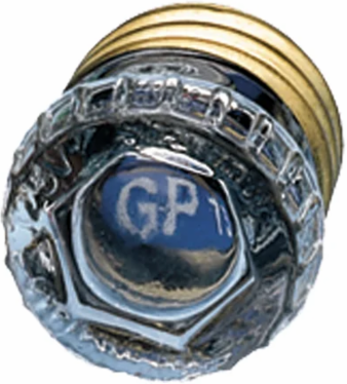

Mersen GP15 Plug Fuse 125V 15A Fast-Acting with Visual Indicator, Screw Mount, 1.29 Inch Length
- MPN: GP15
- UPC: 068938796006
- PPN: FER-GP15
CAD
$2.48
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Mersen Plug Fuses are for industrial and residential applications. Standard non-time delay fuses are for receptacle and lighting circuits. Standard time delay fuses are for motor loads. For Canadian requirements, a type “P” fuse is used for non-motor loads and type “D” fuses are used for electric heating and cycling loads circuits. Both fuses have low melting-point temperature elements. Low-Temp time delay plug fuses have thermal sensitivity are also for cycling loads and motor circuits. Type “S” plug fuses are time delay and tamper-resistant.
Features
- Engineered as a non-time delay, fast-acting component, the GP15 responds almost instantly to overload spikes and short-circuit conditions. This rapid response speed prevents severe thermal damage to sensitive downstream machinery, diagnostic tools, and residential or industrial electronic loads.
- Outfitted with a traditional threaded Edison base, this fuse screws seamlessly into standard, established fuse tracks and lamp-holder style blocks without requiring specialized adapters. This universal design simplifies maintenance routines for facilities managers and residential electricians alike, serving as a drop-in replacement for older electrical infrastructure.
- Featuring a precise 15-amp continuous current rating at 125 volts AC, this plug fuse is purpose-built to safeguard common general-purpose branch circuits. It provides reliable, code-compliant overcurrent protection for commercial lighting tracks, facility utility outlets, and non-motorized appliances without nuisance tripping under normal operating currents.
- Boasting a robust 10,000-amp (10 kA) short-circuit interrupting rating, this glass-body fuse safely isolates severe fault currents within its envelope. This high breaking threshold prevents dangerous physical shattering and localized arcing during a short circuit, shielding personnel and keeping your electrical enclosures undamaged.
Documentation & Downloads
Specifications
Additional
- Voltage
- 125 V
- Fuse Type
- Fast-Acting, Visual Indicator
- Frequency
- 50/60 Hz
- Length
- 1.29 in
- Mounting Type
- Screw
- Body/Insulating Material
- Glass
- Fuse Class
- Plug
- Indication System Type
- Visual Indicator
Amperage15 A
Fuse Ratings10 kA Interrupting Rating AC
AC or DCAC
Weight0.06 lb
Connection/Terminal TypeScrew
Connection/Terminal MaterialBrass
Indication SystemYes
ROHS ComplianceYes
