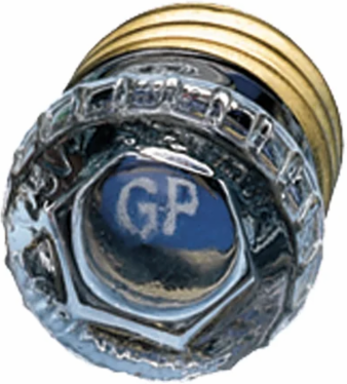

Mersen GP30 Fast-Acting Plug Fuse 125V 30A with Visual Indicator, Screw Mount, 1.13 Inch Diameter
- MPN: GP30
- UPC: 068938796013
- PPN: FER-GP30
CAD
$2.48
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Mersen Plug Fuses are for industrial and residential applications. Standard non-time delay fuses are for receptacle and lighting circuits. Standard time delay fuses are for motor loads. For Canadian requirements, a type “P” fuse is used for non-motor loads and type “D” fuses are used for electric heating and cycling loads circuits. Both fuses have low melting-point temperature elements. Low-Temp time delay plug fuses have thermal sensitivity are also for cycling loads and motor circuits. Type “S” plug fuses are time delay and tamper-resistant.
Features
- Engineered with a precision, low-melting-point element, this Type "P" fast-acting fuse responds almost instantly to overcurrent conditions. This quick-blanking characteristic makes it ideal for protecting resistive non-motor loads, such as residential and commercial lighting branch circuits or standard receptacle arrays, ensuring faults are isolated before downstream equipment is damaged.
- Designed with a universal threaded brass Edison base, this unit screws seamlessly into standard, unmodified lamp-holder style fuse blocks. It allows property managers, maintenance personnel, and electricians to execute quick, tool-free field replacements on older electrical infrastructures without requiring expensive retrofits or modifications to newer, tamper-resistant Type "S" safety bases.
- Featuring a heavy-duty glass window body and a highly visible indication design, this fuse allows operators to spot a blown element at a glance. The clear glass eliminates the time-consuming process of testing each individual unit with a multimeter during a power outage, substantially reducing facility diagnostic downtime and streamlining routine circuit troubleshooting.
- Rated for a continuous 30 Amps at 125VAC, this plug fuse is purpose-built to handle maximum-capacity residential or light commercial general-purpose branch lines. Delivering stable, low-resistance performance across its full rating, it avoids the premature failure and localized thermal buildup common with sub-par generic fuses, ensuring consistent energy flow to your critical loads.
Documentation & Downloads
Specifications
Additional
- Voltage
- 125 V AC
- Interrupting Rating
- 10 kA
- Fuse Class
- Plug
- Length
- 1.29 in
- Weight
- 0.06 lb
- Body/Insulating Material
- Glass
- Fuse Categories
- Type P, Type D, Type S (time delay, tamper-resistant)
- Frequency
- 50/60 Hz
- Indication System
- Visual Indicator
Amperage30 A
Speed/CharacteristicFast-Acting
MountingScrew
Diameter1.13 in
Connection/Terminal MaterialBrass
Fuse StyleNon-time Delay
Base TypeEdison Base
ROHS CompliantYes
AC or DCAC
