Documentation & Downloads

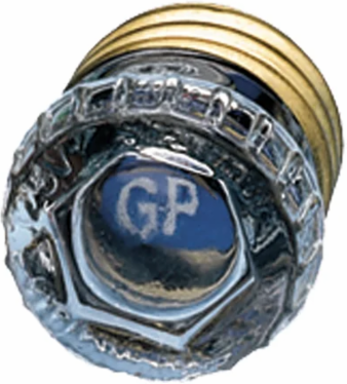

Mersen GP20 Plug Fuse 125V 20A Fast-Acting Screw Mount with Visual Indicator, 0.25 lb
- MPN: GP20
- UPC: 068938838034
- PPN: FER-GP20
CAD
$2.48
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Mersen Plug Fuses are for industrial and residential applications. Standard non-time delay fuses are for receptacle and lighting circuits. Standard time delay fuses are for motor loads. For Canadian requirements, a type “P” fuse is used for non-motor loads and type “D” fuses are used for electric heating and cycling loads circuits. Both fuses have low melting-point temperature elements. Low-Temp time delay plug fuses have thermal sensitivity are also for cycling loads and motor circuits. Type “S” plug fuses are time delay and tamper-resistant.
Features
- Engineered with a non-time-delay response profile, this 20-Amp fuse provides rapid overcurrent protection that reacts instantly to short circuits and dangerous electrical spikes. It is designed to interrupt fault currents up to 10 kA before they can overheat household or commercial branch wiring, keeping standard non-motor loads operating smoothly.
- Featuring a standard, threaded Edison base configuration, this fuse drops easily into traditional screw-in fuse panels and light-duty safety switches without requiring special adapters. The clear glass window on top gives homeowners and electricians an instant visual indicator to confirm if the fuse has blown, speeding up routine panel troubleshooting.
- This fuse is fully certified to meet stringent CSA Class 142301 and UL 248-11 standards, specifically carrying the Canadian Type "P" designation. It features a specialized low melting-point temperature element that ensures robust reliability in domestic or industrial panels while preventing high-resistance connection fires.
Documentation & Downloads
Specifications
Additional
- Voltage
- 125 V AC
- Interrupting Rating
- 10 kA
- Fuse Type
- Fast-Acting
- Mounting
- Screw
- Connection Type
- Screw
- Body Material
- Glass
- Fuse Class
- Plug
- AC or DC
- AC
Amperage20 A
Frequency50/60 Hz
Length1.29 in
Weight0.06 lb
Connection MaterialBrass
Indication SystemVisual Indicator
RoHS ComplianceYes
