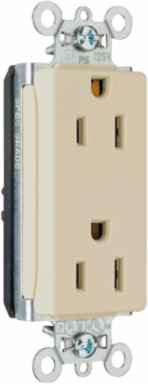

Pass & Seymour PT26252GRY PlugTail® 15A 125V Decorator Duplex Receptacle, Gray, 1-1/2 Inch Width, 2-3/4 Inch Height, 5/8 Inch Depth
Pass & Seymour PT26252GRY PlugTail® 15A 125V Decorator Duplex Receptacle, Gray, 1-1/2 Inch Width, 2-3/4 Inch Height, 5/8 Inch Depth
- MPN: PT26252GRY
- UPC: 785007307900
- PPN: P-S-PT26252GRY
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$23.74/ EA
Description
PlugTail® Decorator Spec Grade Receptacles, 15A, 125VPlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Crimped and welded contacts.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6"" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Specifications
Specifications
- Depth
- 0.625 in
- Phase
- Three
- Amperage
- 15.0 A
- Standard
- UL 498
- Standard
- FEDSPEC
- Color
- Gray
- Number of Wires
- 3.0
- Wall Plate Included
- No
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Connection Location
- Back Only
- Wire Connection Type
- PlugTail
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
Height2.75 in
Width1.5 in
Country of OriginMexico
Voltage125.0 V
Wire Size12 AWG
Product LinePass & Seymour
Indoor/OutdoorIndoor
FeaturesDecorator Style
Outlet TypeStraight Blade
Application SectorCommercial
NEMA Configuration Code5-15R
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
Special FeaturesPlated steel wrap, no exposed terminals, built in connector, crimped & welded contacts
