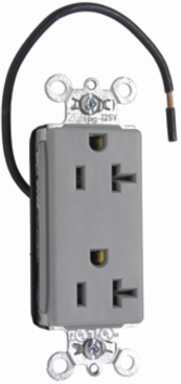

Pass & Seymour PT26362SCGRY PlugTail® 20A Decorator Split Circuit Receptacle, 125V, Gray, 2.75 Inch Height
- MPN: PT26362SCGRY
- UPC: 785007000221
- PPN: P-S-PT26362SCGRY
CAD
$21.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PlugTail® 20A Decorator Split Circuit Receptacle, 125V, Gray, 2.75 Inch Height
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Plated steel wrap strap design for maximum durability and corrosion resistance.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Crimped and welded contacts.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Large brass contacts snugly terminate on device blade terminals.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- Wire Size: #12 AWG THHN
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.625 in
- Special Features
- PlugTail Split Circuit Specification Grade Decorator Duplex Receptacle. When it comes to commercial wiring device installs, flexibility is the name of the game. That's what makes P&S PlugTail® the electrical wiring device platform of the future. Easy to install, change out and upgrade, it's an efficient and cost-effective way to address a building's electrical requirements today.
- Phase
- Single
- Country of Origin
- Mexico
- Voltage
- 125.0 V
- Wire Size
- 12 AWG
- Number of Wires
- 3.0
- Features
- Split Circuit
- Features
- Decorator Style
- Outlet Type
- Straight Blade
- Application Sector
- Commercial
- NEMA Configuration Code
- 5-20R
- Environmental Conditions
- UL94 V2
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
- Color
- Gray
Height2.75 in
Width1.5 in
StandardcULus
Amperage20.0 A
StandardFEDSPEC
StandardUL Listed
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Number of Receptacles2.0
Number of PolesDouble Pole
Connection LocationBack Only
Wire Connection TypePlugTail
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
Dielectric StrengthWithstands 2000V minimum
Product LinePass & Seymour
