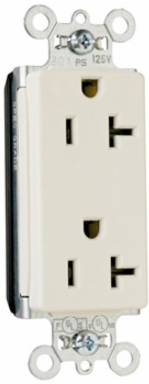

Pass & Seymour PT26352I PlugTail 20A 125V Duplex Receptacle, Ivory, 1.5 Inch Width, 2.75 Inch Height
- MPN: PT26352I
- UPC: 785007307979
- PPN: P-S-PT26352I
- UNSPSC: 39121406
CAD
$27.74
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PlugTail® Decorator Spec Grade Receptacles, 20A, 125V PlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Crimped and welded contacts.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Height | 2.75 in |
| Color | Ivory |
| Amperage | 20.0 A |
| Application Sector | Commercial |
| Indoor/Outdoor | Indoor |
| Environmental Conditions | Flammability: UL94 V2 |
| Dielectric Strength | Withstands 2000V minimum |
| Standard | cULus UL498; FEDSPEC |
| Features | Decorator Style |
| Voltage | 125.0 V |
| Operating Temperature Min | -40.0 °C |
| Operating Temperature | -40°-60°C |
| NEMA Configuration Code | 5-20R |
| Depth | 0.625 in |
|---|---|
| Width | 1.5 in |
| Product Line | Pass & Seymour |
| Warranty Type | 1-Year Limited Warranty |
| Number of Poles | Double Pole |
| Number of Receptacles | 2.0 |
| Special Features | Plated steel wrap strap design for maximum durability and corrosion resistance. .036 inch thick, brass, triple-wipe power contacts for lasting retention. Three drive screws anchor strap to back body and face. No exposed terminals create a finger safe application before, during, and after installation. Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections. Crimped and welded contacts. Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing. Large brass contacts snugly terminate on device blade terminals. Pre-stripped connector leads fasten to conductors, easier than standard pigtails. Exclusive patented feature, circuit label on back allows permanent circuit identification. Auto-ground clip assures positive ground. |
| Number of Wires | 3.0 |
| Wire Size | 12 AWG |
| Operating Temperature Max | 60.0 °C |
| Outlet Type | Straight Blade |
| Wire Connection Type | PlugTail |
| Wall Plate Included | No |
| Connection Location | Back Only |
