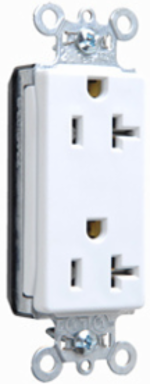

Pass & Seymour PT26352W PlugTail® 20A 125V Spec-Grade Decorator Duplex Receptacle, White
Pass & Seymour PT26352W PlugTail® 20A 125V Spec-Grade Decorator Duplex Receptacle, White
- MPN: PT26352W
- UPC: 785007307986
- PPN: P-S-PT26352W
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$26.43/ EA
Description
PlugTail® Decorator Spec Grade Receptacles, 20A, 125V PlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Crimped and welded contacts.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6"" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Specifications
Specifications
- Depth
- 0.625 in
- Amperage
- 20.0 A
- Voltage
- 125.0 V
- Country of Origin
- Mexico
- Number of Wires
- 3.0
- Indoor/Outdoor
- Indoor
- Features
- Decorator Style
- Outlet Type
- Straight Blade
- Application Sector
- Commercial
- NEMA Configuration Code
- 5-20R
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Dielectric Strength
- Withstands 2000V minimum
- Finish
- Matte
Height2.75 in
Width1.5 in
StandardFEDSPEC
Wire Size12 AWG
StandardcULus UL498
Wall Plate IncludedNo
Number of Receptacles2.0
Number of PolesDouble Pole
Connection LocationBack Only
Wire Connection TypePlugTail
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
ColorWhite
Product LinePass & Seymour
