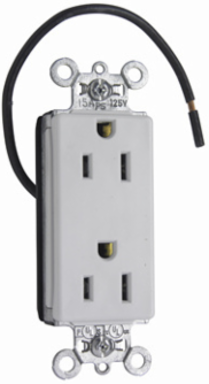

Pass & Seymour PT26262SCW PlugTail Decorator Receptacle, 15A 125V, 2.75 Inch Height, White
Pass & Seymour PT26262SCW PlugTail Decorator Receptacle, 15A 125V, 2.75 Inch Height, White
- MPN: PT26262SCW
- UPC: 785007000375
- PPN: P-S-PT26262SCW
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$18.61/ EA
Description
PlugTail® Decorator Split Circuit Spec Grade Receptacle, 15A, 125A
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Plated steel wrap strap design for maximum durability and corrosion resistance.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Crimped and welded contacts.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Large brass contacts snugly terminate on device blade terminals.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6"" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Specifications
Specifications
- Depth
- 0.625 in
- Height
- 2.75 in
- Width
- 1.5 in
- Voltage
- 125.0 V
- Wire Size
- 12 AWG
- Standard
- cULus UL498
- Features
- Split Circuit
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Connection Location
- Back Only
- Wire Connection Type
- PlugTail
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
- Environmental Conditions
- Flammability: UL94 V2
- Color
- White
Special FeaturesPre-wired with one welded pre-stripped 6" wire lead to facilitate switched receptacle circuit applications. Plated steel wrap strap design for maximum durability and corrosion resistance. .036 inch thick, brass, triple-wipe power contacts for lasting retention. Three drive screws anchor strap to back body and face. No exposed terminals create a finger safe application before, during, and after installation. Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections. Crimped and welded contacts. Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing. Large brass contacts snugly terminate on device blade terminals. Pre-stripped connector leads fasten to conductors, easier than standard pigtails. Exclusive patented feature, circuit label on back allows permanent circuit identification. Auto-ground clip assures positive ground.
Amperage15.0 A
Country of OriginMexico
StandardFEDSPEC
Number of Wires3.0
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Outlet TypeStraight Blade
Application SectorCommercial
NEMA Configuration Code5-15R
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
Dielectric StrengthWithstands 2000V minimum
FeaturesSingle Piece Plated Steel Mounting Strap
Product LinePass & Seymour
