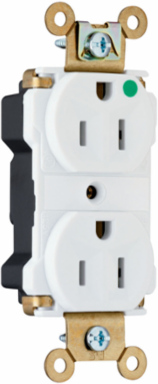

Pass & Seymour PT8200W PlugTail® Extra Heavy Duty Hospital Grade Receptacles, 15A, 125V, White
Pass & Seymour PT8200W PlugTail® Extra Heavy Duty Hospital Grade Receptacles, 15A, 125V, White
- MPN: PT8200W
- UPC: 785007091090
- PPN: P-S-PT8200W
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$36.95/ EA
Description
PlugTail® Extra Heavy Duty Hospital Grade Receptacles, 15A, 125V, White
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Plated steel wrap strap design for maximum durability and corrosion resistance.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Crimped and welded contacts.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Large brass contacts snugly terminate on device blade terminals.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- Wire Size: #12 AWG THHN
Specifications
Specifications
- Depth
- 0.866 in
- Phase
- Three
- Width
- 1.625 in
- Country of Origin
- Mexico
- Standard
- FEDSPEC
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Outlet Type
- Hospital Grade
- Application Sector
- Commercial
- Connection Location
- Back Only
- NEMA Configuration Code
- 5-15R
- Color
- White
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Special Features
- Plated steel wrap, no exposed terminals, built in connector, crimped & welded contacts
Height2.75 in
Amperage15.0 A
StandardUL 498
Voltage125.0 V
Number of Wires3.0
Wire Size14 - 10 AWG
Number of Receptacles2.0
Number of PolesDouble Pole
Application SectorHealthcare
FeaturesBrass Mounting Strap
Wire Connection TypePlugTail
Product LinePass & Seymour
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
