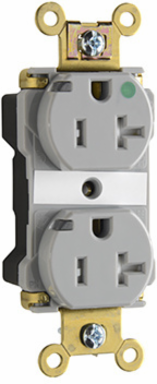

Pass & Seymour PTTR8300PIW PlugTail® 20A 125V Hospital-Grade Duplex Receptacle, White, 0.866 Inch Depth, 1.625 Inch Width, 2.75 Inch Height
- MPN: PTTR8300PIW
- UPC: 785007041507
- PPN: P-S-PTTR8300PIW
CAD
$53.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PlugTail® 20A 125V Hospital-Grade Duplex Receptacle, White, 0.866 Inch Depth, 1.625 Inch Width, 2.75 Inch Height
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- GE Lexan high impact-resistant lens.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Crimped and welded contacts.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- Wire Size: #12 AWG THHN
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.866 in
- Height
- 2.75 in
- Color
- White
- Product Line
- Pass & Seymour
- Standard
- FSUL
- Amperage
- 20.0 A
- Standard
- FEDSPEC
- Number of Wires
- 3.0
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- Connection Location
- Back Only
- Wire Connection Type
- PlugTail
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Dielectric Strength
- Withstands 2000V minimum
Special FeaturesBuilt for the harshest medical environments, Pass&Seymour PlugTail power indicating receptacles feature two industry-exclusive green LEDs that offer clear visual assurance of power indication at the receptacle—even with critical equipment plugged into the device. The LEDs operate independently from one another to accommodate split-circuit wiring installations. Tamper-resistant protection comes standard with each receptacle to further enhance safety.
Width1.625 in
Country of OriginMexico
PhaseSingle
StandardcULus
Voltage125.0 V
StandardUL Listed
StandardCSA Listed
Wire Size14 - 10 AWG
Is Tamper-ResistantYes
Outlet TypeHospital Grade
Outlet TypeTamper-Resistant
Application SectorHealthcare
NEMA Configuration Code5-20R
Environmental ConditionsUL94 V2
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
FeaturesSingle Piece Plated Steel Mounting Strap
