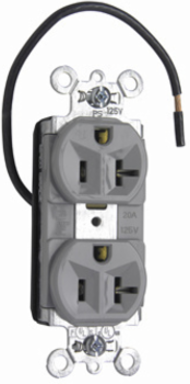

Pass & Seymour PT5362SCGRY PlugTail® Split Circuit Receptacle 20A 125V Gray, 0.78 Inch Depth, 1.322 Inch Width
Pass & Seymour PT5362SCGRY PlugTail® Split Circuit Receptacle 20A 125V Gray, 0.78 Inch Depth, 1.322 Inch Width
- MPN: PT5362SCGRY
- UPC: 785007000191
- PPN: P-S-PT5362SCGRY
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$18.57/ EA
Description
PlugTail® Split Circuit Spec Grade Receptacles, 20A, 125A
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Plated steel wrap strap design for maximum durability and corrosion resistance.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Crimped and welded contacts.
- Large brass contacts snugly terminate on device blade terminals.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Pre-wired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6"" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Specifications
Specifications
- Depth
- 0.78 in
- Color
- Gray
- Width
- 1.322 in
Height2.635 in
Product LinePass & Seymour
Country of OriginMexico
