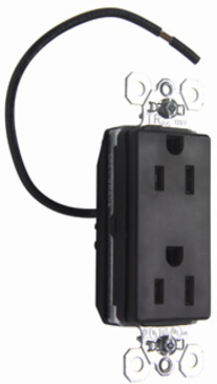

Pass & Seymour PTTR26362SC PlugTail Tamper-Resistant Split Circuit Receptacle, 20A, 125V, 1.5 Inch Width
- MPN: PTTR26362SC
- UPC: 785007001945
- PPN: P-S-PTTR26362SC
CAD
$35.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PlugTail Tamper-Resistant Split Circuit Receptacle, 20A, 125V, 1.5 Inch Width
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Plated steel wrap strap design for maximum durability and corrosion resistance.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Crimped and welded contacts.
- Large brass contacts snugly terminate on device blade terminals.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Pre-wired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.875 in
- Height
- 2.6 in
- Amperage
- 20.0 A
- Standard
- UL 498
- Standard
- FEDSPEC
- Number of Wires
- 4.0
- Features
- Split Circuit
- Is Tamper-Resistant
- Yes
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- NEMA Configuration Code
- 5-20R
- Application Sector
- Residential
- Application Sector
- Multi-Dwelling Unit
- Operating Temperature Min
- -40.0 °C
- Product Line
- Pass & Seymour
- Special Features
- Auto ground clip, circuit label on face, two drive screws anchor, tamper resistant
PhaseThree
Width1.5 in
Country of OriginMexico
Voltage125.0 V
Wire Size12 AWG
Indoor/OutdoorIndoor
Wall Plate IncludedNo
FeaturesDecorator Style
Outlet TypeStraight Blade
Outlet TypeTamper-Resistant
Connection LocationBack Only
Wire Connection TypePlugTail
Warranty Type1-Year Limited Warranty
Operating Temperature Max60.0 °C
ColorBrown
Operating Temperature-40°-60°C
