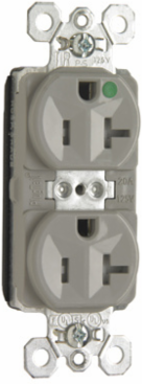

Pass & Seymour PTTR8300GRY PlugTail 20A 125V Hospital-Grade Duplex Receptacle, Gray, 3.281 Inch Height
Pass & Seymour PTTR8300GRY PlugTail 20A 125V Hospital-Grade Duplex Receptacle, Gray, 3.281 Inch Height
- MPN: PTTR8300GRY
- UPC: 785007013412
- PPN: P-S-PTTR8300GRY
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$28.70/ EA
Description
PlugTail® Tamper-Resistant Hospital Grade Duplex Receptacle, Back and Side Wire, 20A, 125V. PlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Brushed finish.
- Plated steel wrap strap design for maximum durability and corrosion resistance.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6"" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Specifications
Specifications
- Depth
- 0.625 in
- Amperage
- 20.0 A
- Width
- 1.5 in
- Voltage
- 125.0 V
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Is Tamper-Resistant
- Yes
- Outlet Type
- Hospital Grade
- Outlet Type
- Tamper-Resistant
- Application Sector
- Healthcare
- NEMA Configuration Code
- 5-20R
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Color
- Gray
- Product Line
- Pass & Seymour
Height3.281 in
StandardUL 498
Country of OriginMexico
StandardFEDSPEC
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Number of Receptacles2.0
Number of PolesDouble Pole
Application SectorCommercial
Connection LocationBack Only
Wire Connection TypePlugTail
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
FinishMatte
FeaturesSingle Piece Plated Steel Mounting Strap
