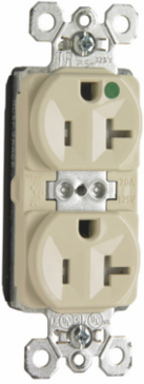

Pass & Seymour PTTR8300LA PlugTail® 20A 125V Hospital-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, Light Almond
Pass & Seymour PTTR8300LA PlugTail® 20A 125V Hospital-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, Light Almond
- MPN: PTTR8300LA
- UPC: 785007013436
- PPN: P-S-PTTR8300LA
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$28.70/ EA
Description
PlugTail® Tamper-Resistant Hospital Grade Duplex Receptacle, Back and Side Wire, 20A, 125V. PlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Brushed finish.
- Plated steel wrap strap design for maximum durability and corrosion resistance.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6"" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Specifications
Specifications
- Depth
- 0.625 in
- Phase
- Three
- Width
- 1.5 in
- Standard
- UL 498
- Standard
- FEDSPEC
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- Connection Location
- Back Only
- Wire Connection Type
- PlugTail
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
- Color
- Light Almond
- Special Features
- Dual mechanical shutter system, plated steel wrap, built in connector, crimped & welded contacts
Height3.281 in
Amperage20.0 A
Country of OriginMexico
Voltage125.0 V
Number of Wires3.0
Wire Size14 - 10 AWG
Is Tamper-ResistantYes
Outlet TypeHospital Grade
Outlet TypeTamper-Resistant
Application SectorHealthcare
NEMA Configuration Code5-20R
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
FeaturesSingle Piece Plated Steel Mounting Strap
Product LinePass & Seymour
