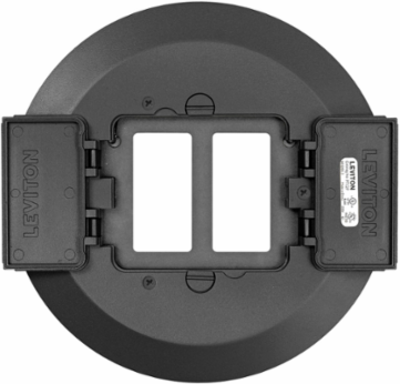

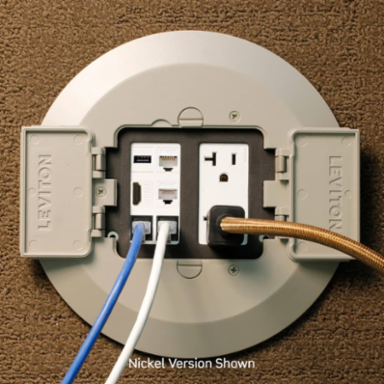

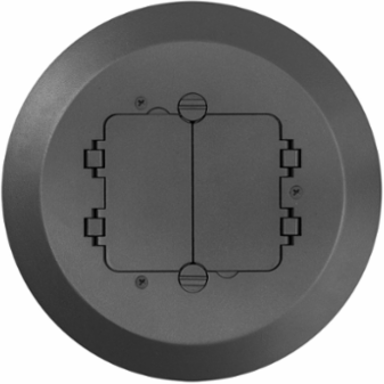

Leviton PTC2F-E Poke-Through Cover 8.38 Inch Diameter, Black, Flip Lids, ADA-Compliant
- MPN: PTC2F-E
- UPC: 078477381069
- PPN: LEV-PTC2F-E
CAD
$215.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Traditional Floor Cover For Use With Leviton 5" Poke Through Floor Box (PT500) Only; Accommodates All Standard Decora Receptacles. The Flip Lids Are A Double-Hinge Design That Can Open 180 Degrees And Lay Flat; Also Includes Metal Subplate And Pre-Assembled Gasket And Mounting Screws, And Cover Mounting Screws, Black
Features
- Only three cover assembly screws allow for easy installations and removals
- Accommodates any standard Decora receptacle
- ADA-Compliant
- Available in nickel, brass, black or gray powder coat *Poke-Through covers are sold separately from the PT500 system *Poke-Through covers come with low voltage divider
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | True |
|---|
Material Specifications
| Cover Material | Aluminum |
|---|
Mechanical Specifications
| Dimensions | 8.38” Diameter X 0.36 High |
|---|
Product Features
| Color | Black |
|---|---|
| Gasket | Pre-installed on Cover |
| Openings | Flip Lid: Doors open 180° |
| Type | Poke-Through |
| Device Type | Cover |
|---|---|
| Ground Plate Included | Yes, with pre-installed gasket |
| Receptacle Compatibility | Any 2 standard Decora receptacles and QuickPort Inserts |
Warranty
| Warranty | 2-Year Limited |
|---|
Environmental Specifications
| Duration Of Fire Protection | Certified for Fire Resistance in 1, 1-1/2 & 2hr fire rated concrete floors |
|---|
| Operating Temperature | -40°C to 70°C |
|---|
Standards & Certifications
| Applicable Standards | UL514A, UL263, CSA C22.2 No. 18.1 |
|---|---|
| UL File No. | E92327, R40253 |
| Certification/Listing | cULus |
|---|
