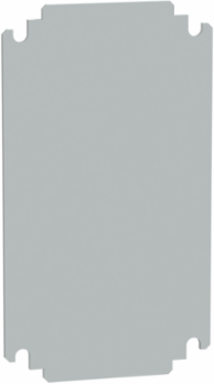

Insulating Mounting Plate 300mm x 200mm, 15kg Load, Fiberglass Reinforced Polyester
Schneider Electric

Schneider Electric NSYMPP32 Insulating Mounting Plate 300mm x 200mm, 15kg Load, Fiberglass Reinforced Polyester

  • MPN: NSYMPP32
  • PPN: SCH-NSYMPP32
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $14.78

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Crafted from fibreglass reinforced polyester, this insulating mounting plate is designed for versatility and durability in various applications. With a permanent permissible load of 15 kg, it ensures reliable support while maintaining a lightweight profile of just 3 kg. The plate features a plain design and is specifically compatible with Schneider Electric's PanelSeT range, including the S3D and CRN series, making it an ideal choice for seamless integration into your existing setups. Its dimensions of 300mm in height and 200mm in width provide ample space for mounting, while the gray color (RAL 7035) offers a neutral aesthetic that blends well with most enclosures. This mounting accessory is easy to install, whether through direct fixing on backstuds or using screws, ensuring a secure fit in any environment.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Spain
    Width
    7.87 in
    Height11.81 in

    Physical Attributes

    Color
    Gray RAL 7035)

    Important Information Attributes

    Persona Type Ids
    LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Enclosure Nominal Dimensions
    -, -
    Mounting Location
    step slide, direct fixing on backstuds
    Local Publishable Date
    2026-04-13
    Stocking Flag
    Y
    Weee Scope
    Out
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1922
    China Rohs In Scope
    No
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Device Application
    multi-purpose
    Mounting Plate Description
    plain
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Quantity Per Set
    set of 1
    Returnability
    No
    Thickness
    4 mm
    Height Nominal
    nominal: 265 mm
    Width Nominal
    nominal: 150 mm
    Accessory / Separate Part Category
    mounting accessory
    Package Weight(Lbs)
    274.000 g
    Warranty (In Months)
    18
    Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Fixing Modescrewed on backstuds M8, by fixing element
    Local Data StatusPublishable
    Return IndicatorN
    Stock Policy2
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Materialfibreglass reinforced polyester
    Permanent Permissible Load15 kg
    Product Or Component Typemounting plate
    RangePanelSeT
    Sustainable PackagingNo
    Pep CodeENVPEP1001004EN
    Height Usefulenclosure nominal dimension: 300 mm
    Width Realenclosure nominal dimension: 200 mm
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code3926909989

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Reach Free Shvc
    Yes
    Toxic Heavy Metal Free
    Yes
    Environmental Disclosure
    ENVPEP1001004EN
    Packaging Made With Recycled Cardboard
    No
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP1001004EN
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticNo
    Reach RegulationFree of Substances of Very High Concern above the threshold

    General Attributes

    Product Or Component Type
    mounting plate

    ETIM

    ETIM 8
    EC000213
    ETIM 9EC000213

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
