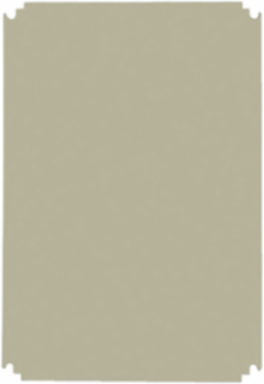

Insulating Mounting Plate 400x300mm, Fibreglass Reinforced Polyester, 7 kg
Insulating Mounting Plate 400x300mm, Fibreglass Reinforced Polyester, 7 kg
Schneider Electric

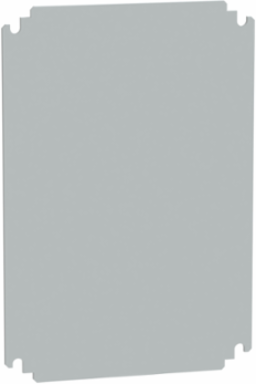

Schneider Electric NSYMPP43 Insulating Mounting Plate 400x300mm, Fibreglass Reinforced Polyester, 7 kg

  • MPN: NSYMPP43
  • PPN: SCH-NSYMPP43
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $36.34

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Designed for versatility and durability, this insulating mounting plate from Schneider Electric is crafted from fibreglass reinforced polyester, ensuring a robust solution for various applications. With a thickness of 4 mm and a nominal height of 325 mm, it is perfectly compatible with the PanelSeT S3D, PanelSeT CRN, and Thalassa PLM ranges, making it an ideal choice for multiple enclosure setups. Weighing 7 kg and capable of supporting a permanent load of up to 30 kg, this gray mounting plate can be securely fixed using M8 screws on backstuds, providing reliable installation for your electrical components. Its design not only emphasizes practicality but also complies with environmental standards, making it a conscientious choice for modern installations.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Spain, France
    Width
    11.81 in
    Height15.75 in

    Physical Attributes

    Color
    Gray RAL 7035)

    Important Information Attributes

    Persona Type Ids
    LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Enclosure Nominal Dimensions
    -, -
    Mounting Location
    direct fixing on backstuds, step slide
    Local Publishable Date
    2025-12-09
    Stocking Flag
    N
    Weee Scope
    Out
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1922
    China Rohs In Scope
    No
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Device Application
    multi-purpose
    Material
    fibreglass reinforced polyester
    Permanent Permissible Load
    30 kg
    Product Or Component Type
    mounting plate
    Range
    PanelSeT
    Sustainable Packaging
    No
    Accessory Separate Part Category
    mounting accessory
    Pep Code
    ENVPEP1001004EN
    Height Useful
    enclosure nominal dimension: 400 mm
    Width Real
    enclosure nominal dimension: 300 mm
    Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Fixing Modescrewed on backstuds M8, by fixing element
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Energy Efficiency OptimizedFalse
    Mounting Plate Descriptionplain
    Product AvailabilityStock - Normally stocked in distribution facility
    Quantity Per Setset of 1
    ReturnabilityYes
    Thickness4 mm
    Warranty In Months18
    Height Nominalnominal: 325 mm
    Width Nominalnominal: 250 mm

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Reach Free Shvc
    Yes
    Toxic Heavy Metal Free
    Yes
    Environmental Disclosure
    ENVPEP1001004EN
    Packaging Made With Recycled Cardboard
    No
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP1001004EN
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticNo
    Reach RegulationFree of Substances of Very High Concern above the threshold

    General Attributes

    Product Or Component Type
    mounting plate

    ETIM

    ETIM 8
    EC000213
    ETIM 9EC000213

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
