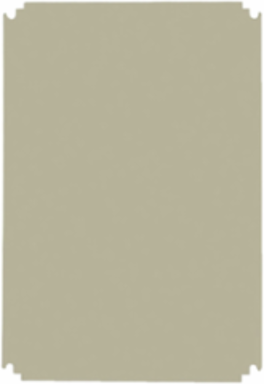

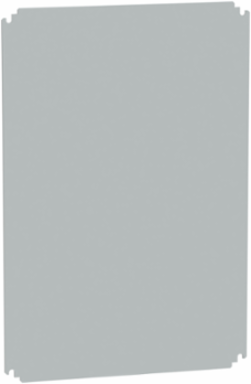

Schneider Electric NSYMPP75 Insulating Mounting Plate 700mm x 500mm Fibreglass Reinforced Polyester, 875kg Load
- MPN: NSYMPP75
- PPN: SCH-NSYMPP75
CAD
$129.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Crafted from durable fibreglass reinforced polyester, this insulating mounting plate is designed to enhance the functionality of your electrical enclosures. With a robust construction capable of supporting a permanent permissible load of up to 875 kg, it ensures reliable performance in various applications. Measuring 700mm in height and 500mm in width, this versatile mounting plate can be easily installed using backstuds or fixing elements, making it a practical choice for any multi-purpose project. Its sleek gray finish (RAL 7035) not only adds a modern touch but also integrates seamlessly into your existing setups, offering both aesthetic appeal and structural integrity.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 27.56 in
- Country of Origin
- Brazil, Spain, France, United States
Width19.69 in
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Mounting Location
- step slide, direct fixing on backstuds
- Local Publishable Date
- 2026-04-13
- Stocking Flag
- N
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1922
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Material
- fibreglass reinforced polyester
- Permanent Permissible Load
- 875 kg
- Product Or Component Type
- mounting plate
- Range
- PanelSeT
- Sustainable Packaging
- No
- Accessory Separate Part Category
- mounting accessory
- Pep Code
- ENVPEP1001004EN
- Height Useful
- enclosure nominal dimension: 700 mm
- Width Real
- enclosure nominal dimension: 500 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Fixing Modescrewed on backstuds M8, by fixing element
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Mounting Plate Descriptionplain
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityYes
Thickness4 mm
Warranty In Months18
Height Nominalnominal: 665 mm
Width Nominalnominal: 450 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1001004EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- mounting plate
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
