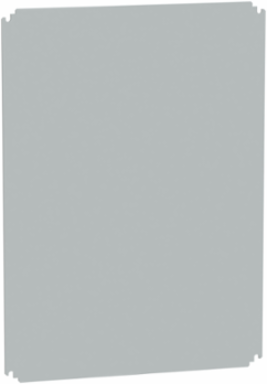

Schneider Electric NSYMPP86 Insulating Mounting Plate 765mm x 550mm Fibreglass Reinforced Polyester
Schneider Electric NSYMPP86 Insulating Mounting Plate 765mm x 550mm Fibreglass Reinforced Polyester
- MPN: NSYMPP86
- PPN: SCH-NSYMPP86
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$182.71/ EA
Description
Designed for versatility and durability, this insulating mounting plate is crafted from fibreglass reinforced polyester, ensuring it meets the demanding needs of various applications. With a nominal width of 550 mm and a height of 765 mm, this plate is compatible with the PanelSeT and Thalassa enclosure ranges, providing a reliable solution for mounting and installation. Capable of supporting a maximum load of 150 kg, it is ideal for heavy-duty use while maintaining a lightweight profile at just 3.8 kg. The plate features a plain design and is easily fixed using backstuds or other mounting elements, making it a practical addition to your enclosure setup.
Features
- Robust and insulating design
- Smooth polyester surface
- Fast setup
- Flexibility to fix electrical components
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
Complementary Attributes
- Maximum Load
- 150 kg PLM enclosure, 150 kg S3D, CRN, S3X enclosures
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Mounting Location
- step slide, direct fixing on backstuds
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Application
- multi-purpose
- Material
- fibreglass reinforced polyester
- Package Weight Lbs
- 3.188 kg
- Product Or Component Type
- mounting plate
- Range
- PanelSeT
- Surface And Useful Surface
- 42.1 dm²
- Thickness
- 5 mm
- Medium Desc
- Insulating mounting plate for enclosure H800xW600mm made of polyester
- Product Kit Identifier
- N
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Fixing Modescrewed on backstuds M8, by fixing element
Permanent Permissible Load63.1 kg S3D, CRN, S3X enclosures, 63.1 kg PLM enclosure
Local Publishable Date2025-12-09
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Energy Efficiency OptimizedFalse
Mounting Plate Descriptionplain
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityYes
Sustainable PackagingNo
Accessory Separate Part Category2mounting accessory
Stocking FlagN
Pep CodeENVPEP1001004EN
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP1001004EN
General Attributes
- Product Or Component Type
- mounting plate
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 31.5 in
Width23.62 in
