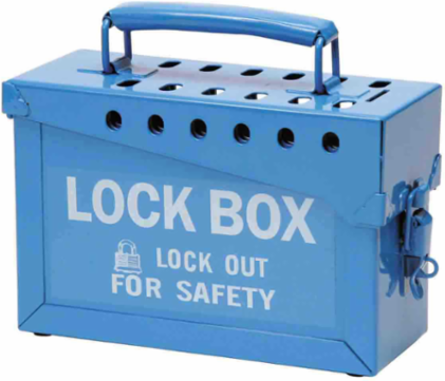

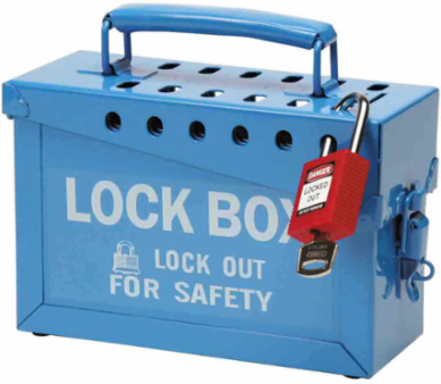

Brady 45190 Portable Metal Group Lockout Box, Blue, 40 Lock Capacity
- MPN: 45190
- UPC: 754473451905
- PPN: BRD-45190
- UNSPSC: 39121904
CAD
$107.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Made of heavy-duty steel and powder coated for extra rust-resistance;this portable box includes a lockable clasp and a slot to allow keys to be inserted when box is locked.
Features
- Accommodates up to 13 padlocks on the lid and can also be used as a lock storage box for up to 40 padlocks.

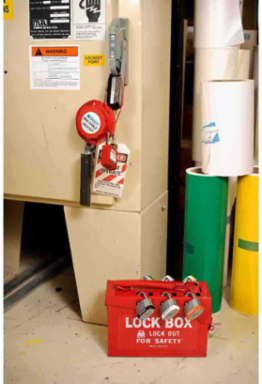

- Use one lock on each energy control point and place the keys in the lockout box;each worker then places his own lock on the box to prevent access
- Each employee retains exclusive control, as required by OSHA, by placing his own lock on the lockout box containing the keys to the job locks
- As long as any one worker's lock remains on the lockout box, the keys to the job locks contained inside cannot be accessed
Documentation & Downloads
Specifications
Key Specifications
| Brand Name | Brady® |
|---|---|
| Enables Industry Compliance | OSHA 1910.147 |
| Lockout Box Type | Portable - Empty |
| Maximum Number of Padlocks Stored | 40 |
| Steel Type | Heavy-Duty |
| Total Qty per Pack | 1 Piece(s) / Pack |
| Brady Material Number | LOTO-18 |
| Lockout Box Material | Steel |
| Depth (in/ft/yd) | 3.5 in |
| Dimensions | 6 in H x 9 in W x 3.5 in D |
| Height (in/ft/yd) | 6 in |
| Maximum Service Temperature °C | 175 °C |
| Sign Size-General | 6 in x 9 in |
| Size - Width (mm) | 227.00 mm |
| Width (mm/cm/m) | 228.6 mm |
| Color | Blue |
|---|---|
| Language | English |
| Maximum Number of Padlocks | 13 |
| Primary Noun, Basic Function | Lock Box |
| Text Legend | LOCK BOX LOCKOUT FOR SAFETY |
| Adhesive (Y/N) | No |
| Coating Material | Powder Coated |
| Material | Powder-coated Steel |
| Depth (mm/cm/m) | 88.90 mm |
| Dimensions (Metric) | 227.00 mm W x 152.40 mm H x 88.90 mm D |
| Height (mm/cm/m) | 152.40 mm |
| Minimum Service Temperature °C | -20 °C |
| Size - W x H x D (mm) | 227.00 x 152.40 x 88.90 |
| Width (in/ft/yd) | 9 in |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliant | No |
| Contains CA PROP 65 Substance | No |
|---|---|
| EU RoHS Compliance | Not Applicable |
