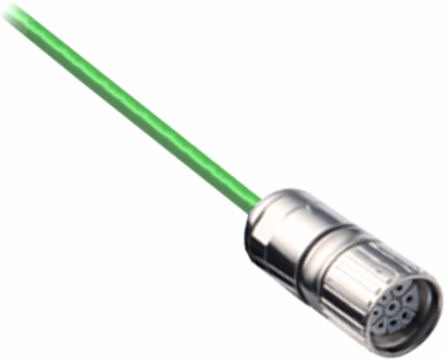

Schneider Electric VW3E1143R300 Power Cable 30 Meter with M23 Connector and 1.5 mm2 Cross Section

MPN: VW3E1143R300
PPN: SCH-VW3E1143R300

$889.97

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Lexium 52 & Motors range, an offer of connection accessories for power supply. This power cable is an accessory for Axis 1 STS40/60/80. The length of this cable is 30m. It is furnished with M23 industrial connector for electrical connection. The cable composition is 1.5mm². The connector is made of metal. It weighs 7.542kg. This range is compatible with Lexium 52, Lexium 62 and Lexium STS. The product is compatible with LXM 62 servo drive, LXM 52 servo drive, SH3055.P and SH3070.P/M. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Germany, Hungary, United States

Physical Attributes

Cable Length	30 m

Important Information Attributes

Persona Type Ids	EU, OM
Accessory / Separate Part Destination	temperature sensor, power supply, holding brake
Carbon Footprint Of The End-of-life Phase [C1 To C4]	15 kg CO2 eq., 14.735601769195403
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	44 kg CO2 eq., 44.49050405176072
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Traceability	No
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1409020EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	3
Function Option	Advanced
Market Segmentation	Industrial
Cable Cross Section	1.5-1.5 mm²
Material	metal
Product Or Component Type	power cable
Returnability	Yes
Sustainable Packaging	No
Pep Code	ENVPEP1409020_V3
Pep Verification Date	2025-10-12
Psr Version	PSR-0001-ed4-EN-2022 11 16
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Accessory / Separate Part Category	connection accessories
Package Weight(Lbs)	7.040 kg
Warranty (In Months)	18

Persona Type Names	End User, Original Equipment Manufacturer
Carbon Footprint Of The Distribution Phase [A4]	1.025953713634762, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.03948869982876893, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Stocking Flag	Y
Serviceability	No
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	3
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Connector Type	M23
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	PacDrive 3
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	60 kg CO2 eq.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To transmit energy over a distance of 5 meter during 10 years at a 100% use rateTo transmit energy over a distance of 5 meter during 10 years at a 100% use rate
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; Germany, DE
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; Germany, DE
Recyclability Potential In %	21
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8544429090

Environment Attributes Main

Product Compatibility	LXM 62 servo drive, LXM 52 servo drive, SH3055.P..., SH3070.P/M..., SH3100.P/M..., SH31401M..., MH3070.P..., MH3100.P...
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1409020EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1409020_V3
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
China Rohs Regulation	X
Carbon Footprint	60.29154823441966
Environmental Disclosure	ENVPEP1409020_V3
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-10-12
Psr Version	PSR-0001-ed4-EN-2022 11 16
