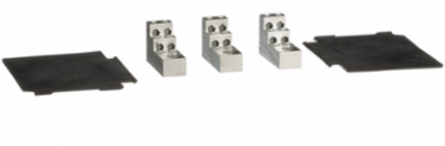

Schneider Electric PDC6BD6 PowerPacT B Circuit Breaker Connectors, 125A, Quantity 3

MPN: PDC6BD6
PPN: SCH-PDC6BD6
UNSPSC: 39121601

$713.00

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Square D PowerPact family is industry leading innovation and protection for heavy duty commercial and industrial appliacations PowerPact B-frame circuit breakers provides economical thermal-magnetic circuit protection in a compact size Power distribution connectors can be used for multiple load wire connections on one circuit breaker in place of standard distribution block to save space and time. The connectors are attached to circuit breaker terminals equipped with separately provided terminal nut connectors. This power distribution connectors are used for PowerPact B-frame breakers with current rating up to 125A and has height as 1in. Kit contents mounting hardware and lugs, comes as 3 pieces in kit. Wire terminal data is performed as (6) AWG 14 - AWG 6

Features

Power distribution connector for PowerPacT B circuit breakers up to 125A rated
For use with load connections on one circuit breaker in place of standard distribution block to save space and time.
Use on load end of circuit breaker only
Terminal data is (6) 14 - 6 AWG only copper wire
Kit contens mounting hardware, lugs
Use in UL508 Industrial Control applications only and in UL1995/CSA C22.2 No. 236 heating and cooling equipment

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Complementary Attributes

Line Rated Current	15-125 A

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Conductor Material	aluminium, copper
Local Publishable Date	2026-03-26
Serviceability	No
Field Service Division	PPIBS
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2542
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Product Availability	Stock - Normally stocked in distribution facility
Provided Equipment	interphase barriers
Range	ComPacT
Returnability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Accessory / Separate Part Type	connection kit
Customs Code	8536904000

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	Y
Traceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Energy Efficiency Optimized	False
Product Or Component Type	cable connector
Quantity Per Set	set of 3
Range Of Product	PowerPact B
Sustainable Packaging	Yes
Connections Terminals	screw terminal 2.5-16 mm² 14 AWG...6 AWG)
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes

Take Back	No
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
