Square D

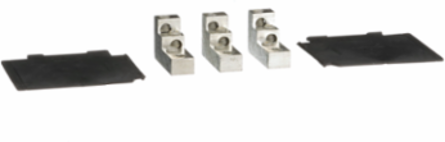

Square D PDC3BD2 Circuit breaker accessory, PowerPacT B, connectors, power distribution, 125A, qty 3

Circuit breaker accessory, PowerPacT B, connectors, power distribution, 125A, qty 3
  • MPN: PDC3BD2
  • PPN: SCH-PDC3BD2

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$695.23/ EA

Description

Square D PowerPact family is industry leading innovation and protection for heavy duty commercial and industrial appliacations PowerPact B-frame circuit breakers provides economical thermal-magnetic circuit protection in a compact size Power distribution connectors can be used for multiple load wire connections on one circuit breaker in place of standard distribution block to save space and time. The connectors are attached to circuit breaker terminals equipped with separately provided terminal nut connectors. This power distribution connectors are used for PowerPact B-frame breakers with current rating up to 125A and has height as 1.2in. Kit contents mounting hardware and lugs, comes as 3 pieces in kit. Wire terminal data is performed as (3) AWG 14 - AWG 2

Specifications

Complementary

Conductor Material
aluminum || copper
Provided Equipment
interphase barriers
Connections - Terminals
screw terminal 2.5-35 mm² AWG 14...AWG 2)
Quantity Per Setset of 3
[In] Rated Current15-125 A

Specifications

Product Or Component Type
cable connector
Accessory / Separate Part Typeconnection kit

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1610005EN
Pvc Free
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Halogen Content PerformanceHalogen free product
