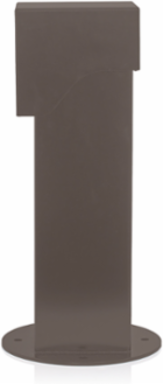

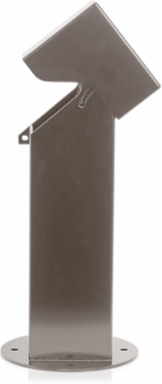

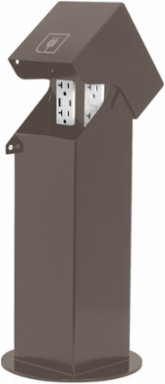

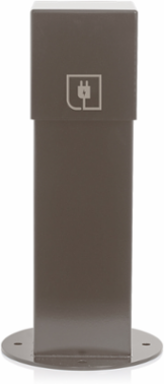

Leviton 2PH18-2Z Power Pedestal Kit, Standard Hinge, Surface Mount
- MPN: 2PH18-2Z
- PPN: LEV-2PH18-2Z
CAD
$2345.32
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
2-Gang 18” Stainless Steel Power Pedestal Kit, Surface Mount, NEMA 3R, Lockable Hinged Top, Self-Closing Lid, Bronze, Kit Includes 20 Amp Weather-Resistant a Tamper-Resistant GFCI (G5362-WTW) and 20 Amp Weather-Resistant Receptacle with Type A and C USB Ports (W5833-W)
Features
- SAFE – bring power to previously unreachable locations in a weatherproof, NEMA 3R rated enclosure
- CONVENIENT – easy to mount and install with a variety of device configurations
- VERSATILE – ideal for a variety of applications including campgrounds, public parks, airports, campuses, commercial buildings, and more
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Please Contact Customer Service |
|---|
| RoHS Compliant | False |
|---|
Material Specifications
| Construction | Welded pedestal body, base and weatherproof cover |
|---|---|
| Mounting Hardware | Anchors Included |
| Grounding | Stainless Steel (Pre-installed Lug) |
|---|---|
| Pedestal Material | 304 Stainless Steel (14 gauge body and cover, 7 gauge base) |
Mechanical Specifications
| Conduit Feeds | Accommodates two 1-1/2" conduit raceways |
|---|---|
| Maximum Dimensions | 18.0"H x 8.5"W x 8.5"D |
| Height | 18" |
|---|---|
| Mounting Plate | 2-Gang Decora |
Product Features
| Application | Commercial|RV/Campsites |
|---|---|
| Color | Bronze |
| Kitted Options | Comes with Leviton Receptacles |
| Top | Lockable Hinged Top |
| Base | Pedestal |
|---|---|
| Hinge Type | Standard |
| Receptacle Compatibility | Decora Style |
Warranty
| Warranty | 1-Year Limited |
|---|
Electrical Specifications
| Max. Amperage | 30A Max |
|---|
| Voltage | 125 VAC |
|---|
Standards & Certifications
| Certification/Listing | cULus, NOM |
|---|
