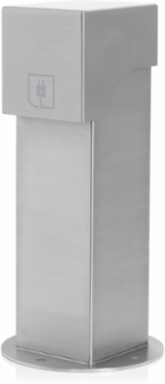

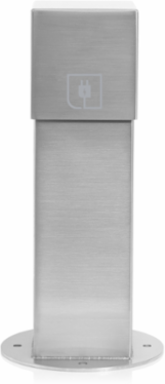

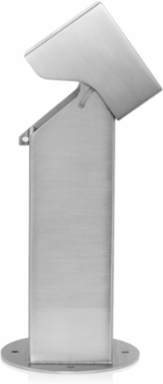

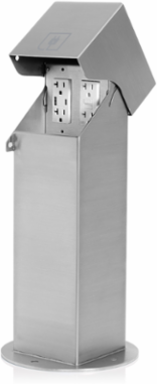

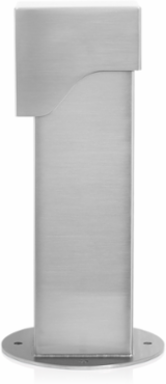

Leviton 2PH18-2S Power Pedestal Kit, Standard Hinge, Surface Mount
- MPN: 2PH18-2S
- PPN: LEV-2PH18-2S
CAD
$2345.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
2-Gang 18” Stainless Steel Power Pedestal Kit, Surface Mount, NEMA 3R, Lockable Hinged Top, Self-Closing Lid, Brushed Stainless Steel, Kit Includes 20 Amp Weather-Resistant and Tamper-Resistant GFCI (G5362-WTW) and 20 Amp Weather-Resistant Receptacle with Type A and C USB Ports (W5833-W)
Features
- SAFE – bring power to previously unreachable locations in a weatherproof, NEMA 3R rated enclosure
- CONVENIENT – easy to mount and install with a variety of device configurations
- VERSATILE – ideal for a variety of applications including campgrounds, public parks, airports, campuses, commercial buildings, and more
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Material Specifications
- Construction
- Welded pedestal body, base and weatherproof cover
- Mounting Hardware
- Anchors Included
GroundingStainless Steel (Pre-installed Lug)
Pedestal Material304 Stainless Steel (14 gauge body and cover, 7 gauge base)
Mechanical Specifications
- Conduit Feeds
- Accommodates two 1-1/2" conduit raceways
- Maximum Dimensions
- 18.0"H x 8.5"W x 8.5"D
Height18"
Mounting Plate2-Gang Decora
Product Features
- Application
- Commercial|RV/Campsites
- Color
- Brushed Stainless Steel
- Kitted Options
- Comes with Leviton Receptacles
- Top
- Lockable Hinged Top
BasePedestal
Hinge TypeStandard
Receptacle CompatibilityDecora Style
Warranty
- Warranty
- 1-Year Limited
Electrical Specifications
- Max. Amperage
- 30A Max
Voltage125 VAC
Standards & Certifications
- Certification/Listing
- cULus, NOM
Accessories
