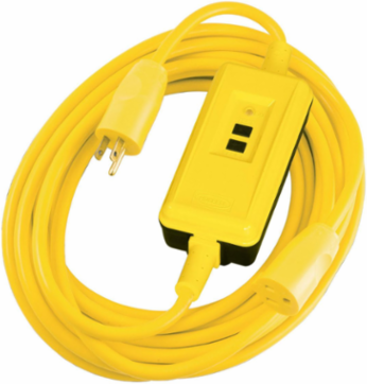

Hubbell Wiring Device-Kellems GFPST50C15WM GFCI Line Cord, 15A 120V AC, 50 Foot, Yellow
- MPN: GFPST50C15WM
- UPC: 783585703404
- PPN: HBL-GFPST50C15WM
- UNSPSC: 39121406
CAD
$581.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Power Protection Products, GFCI Linecords, Commercial, Manual Set, 15A 120V AC, 5-15R, 50' Cord Lenth, 4-6 mA Trip Level, Yellow
Features
- Unit must be reset by pushing the reset button upon plug in and after loss of primary power
- After a ground fault condition, unit must be reset by pushing the reset button
- Ideal for applications where operator injury might occur if equipment were to restart after a power failure
- Manual Set
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 10.000 in
- Amperage Rating
- 15 A
- Color
- Yellow
- Standard
- UL Listed
- Type
- Line Cord
- Voltage Rating Description
- 120 VAC
- General Literature Asset 1 Display Text
- Wiring Device Solutions for Strategic Manufacturing Facilities
- General Literature Asset 3 Display Text
- Pulp & Paper Solutions
- Conductor Type
- Copper
- Number Of Conductors
- 3
- Strands
- Multi
- Class Code
- A40
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- GFP50C15WM
- Construction
- Fabricated
- Material - Insulation
- Elastomer
- Series
- Extra Heavy Duty
- BOX SIZE
- (in)
- Each - Pack Description
- Each
- NAICS Code
- 335931A107
Current / Amperage Rating15 A
Industry Standard(s)UL Listed
ApplicationLine Cord with Male/Female Ends
Special FeaturesManual Set
Temperature Rating-35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
Voltage Rating120 VAC
Weight8.35 lb.
General Literature Asset 2 Display TextHealth Screening Power Solutions
Conductor Size#14 AWG
ConnectivityPlug-In
Outside Diameter0.245
StyleManual Set
Description - InvoiceGFCI CORDSET, 15A 120V, 50'
Harmonization Code8536308000
MSDS FlagNo
Sub Class CodeA40A410
Current Rating15 A
Material - JacketPVC
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783585703404
Lowest Level UOMEach
