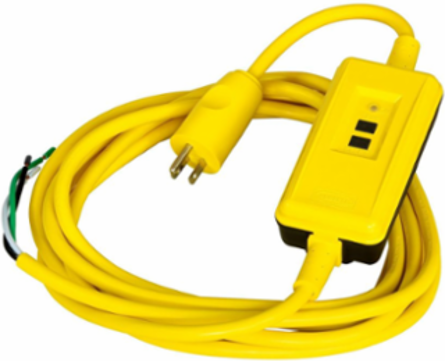

Hubbell Wiring Device-Kellems GFPSTOEMM GFCI Line Cord, 15A 120V AC, 15' Length, Manual Set, 3 Conductors
- MPN: GFPSTOEMM
- UPC: 783585703398
- PPN: HBL-GFPSTOEMM
- UNSPSC: 39121406
CAD
$346.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Power Protection Products, GFCI Linecords, Commercial, Manual Set, 15A 120V AC, 5-15R, 15' Cord Length, 4-6 mA Trip Level, Black and Yellow
Features
- Unit must be reset by pushing the reset button upon plug in and after loss of primary power
- After a ground fault condition, unit must be reset by pushing the reset button
- Ideal for applications where operator injury might occur if equipment were to restart after a power failure
- Manual Set
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 10.000 in
- Amperage Rating
- 15 A
- Color
- Black
- Standard
- UL Listed
- Type
- Line Cord
- Voltage Rating Description
- 120 VAC
- General Literature Asset 1 Display Text
- Portable GFCI Devices
- General Literature Asset 3 Display Text
- Pulp & Paper Solutions
- Conductor Type
- Copper
- Number Of Conductors
- 3
- Strands
- Multi
- Class Code
- A40
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A40A410
- Current Rating
- 15 A
- Material - Jacket
- PVC
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 11.25 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Lowest Level UOM
- Each
Current / Amperage Rating15 A
Industry Standard(s)UL Listed
ApplicationLine Cord with Male End Only
Special FeaturesManual Set
Temperature Rating-35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
Voltage Rating120 VAC
Weight1.65 lb.
General Literature Asset 2 Display TextEntertainment Product Solution Guide
Conductor Size#14 AWG
ConnectivityPlug-In
Outside Diameter0.245
StyleManual Set
Description - InvoiceGFCI CORD, 15A 120V, 15' LEADS, MAN
Harmonization Code8536308000
MSDS FlagNo
ConstructionFabricated
Material - InsulationElastomer
SeriesExtra Heavy Duty
BOX SIZE8.800x10.700x9.800 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783585703398
Each - Pack DescriptionEach
NAICS Code335931A107
