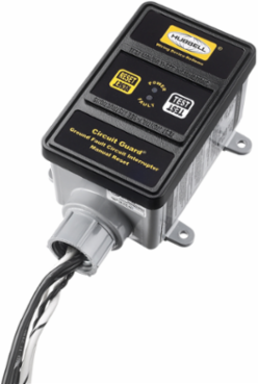

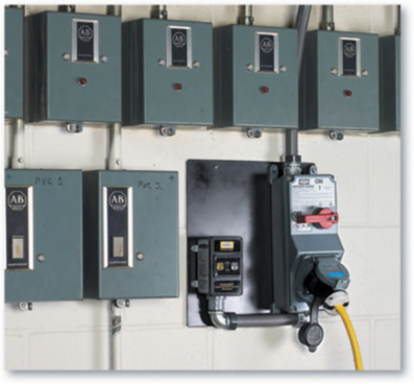

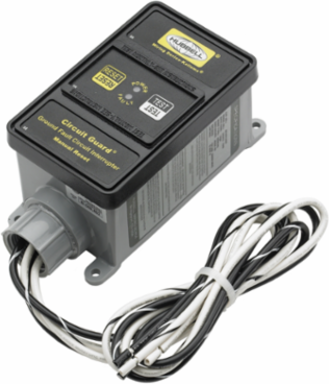

Hubbell Wiring Device-Kellems GFHW430 Hard Wired GFCI, 30A 3-Phase 120/208V AC, 4-6 mA Trip Level
Hubbell Wiring Device-Kellems GFHW430 Hard Wired GFCI, 30A 3-Phase 120/208V AC, 4-6 mA Trip Level
- MPN: GFHW430
- UPC: 783585521084
- PPN: HBL-GFHW430
- UNSPSC: 26121536
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$915.83/ EA
Description
Power Protection Products, Hard Wired GFCI, Industrial/Commercial, No Output, 30A 3-Phase 120/208V AC, 4-6 mA Trip Level, Black.
Features
- Electromagnetic Latching Mechanism
- Trips if ground and neutral touch at load side
- Red blinking light plus optional audible alarm
- Open neutral protection Trips upon loss of neutral
- Manual Set- No Alarm
Specifications
Specifications
- Country of Origin
- United States
- Width
- 4.300 in
- Performance
- Electrical - Dielectric Withstand - 1500 VRMS across contact, 4000 VRMS between conductors & enclosure;Electrical - Operating Voltage Range - 85% to 110%;Electrical - Rated Voltage - 120V AC, 240V AC & 120/240V, 3Ø 250V AC, 3Ø 120/208V AC;Electrical - Surge Withstand - 6000V impulse, 0.5 ms rise time 100kHz ringing frequency;Environmental - Construction - Industrial grade design;Environmental - Housing Rating - UL Type 4X;Environmental - Leakage Current - At 93% Humidity leakage current is zero;Environmental - Operating Temperature - -35°C to 66°C, -30°F to 150°F.;Environmental - Type - Class A GFCI
- Application
- Wire Into Circuit
- Conductor Size
- #10 AWG
- Special Features
- Manual Set- No Alarm
- Strands
- Multi
- Type
- Hard Wired
- Weight
- 2.4 lb.
- Engineering Drawing 1 Display Text
- GFHW430 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Conductor Type
- Copper
- Number Of Conductors
- 5
- Class Code
- A40
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A40A410
- Current Rating
- 30 A
- Series
- Extra Heavy Duty
- BOX SIZE
- 4.300x10.700x4.400 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585521084
- Case Weight
- 2.400 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating30 A
Industry Standard(s)UL Listed
Amperage Rating30 A
ColorBlack
Number of Conductors5
StandardUL Listed
Temperature Rating-35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
Voltage Rating3 Phase 120/208 VAC
Voltage Rating Description3 Phase 120/208 VAC
General Literature Asset 1 Display TextSafety Product Guide
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
ConnectivityHard Wired
StyleManual Set
Description - InvoiceHW GFCI, 30A 3-PH 120/208V, MAN
Harmonization Code8536308000
MSDS FlagNo
ConstructionFabricated
Material - InsulationThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack13 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
