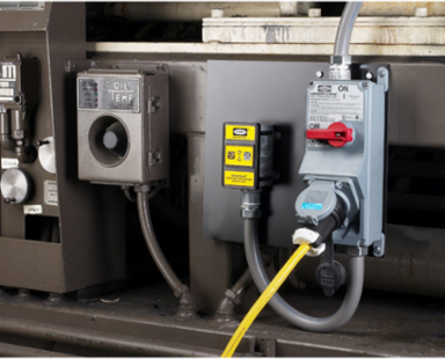

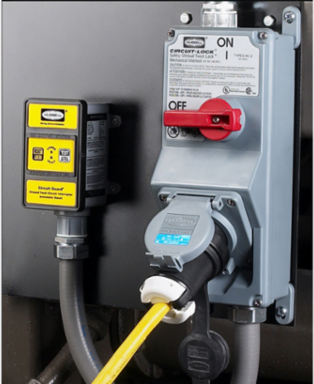

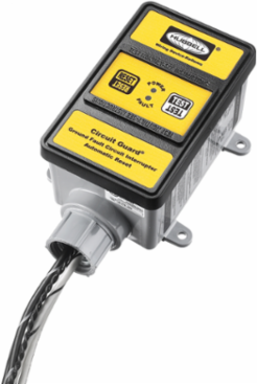

Hubbell Wiring Device-Kellems GFHW531 Hard Wired GFCI 30A 3-Phase 250V AC Yellow, 4 in Width
- MPN: GFHW531
- UPC: 783585521077
- PPN: HBL-GFHW531
- UNSPSC: 26121536
CAD
$915.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Power Protection Products, Hard Wired GFCI, Industrial/Commercial, No Output, 30A 3-Phase 250V AC, 4-6 mA Trip Level, Yellow.
Features
- Electromagnetic Latching Mechanism
- Trips if ground and neutral touch at load side
- Red blinking light plus optional audible alarm
- Open neutral protection Trips upon loss of neutral
- Auto Set- No Alarm
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- GFHW531 AutoCAD Drawing
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Current / Amperage Rating
- 30 A
- Industry Standard(s)
- cCSA
- Amperage Rating
- 30 A
- Color
- Yellow
- Number of Conductors
- 4
- Standard
- cCSA
- Temperature Rating
- -35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
- Voltage Rating
- 3 Phase 250 VAC
- Voltage Rating Description
- 3 Phase 250 VAC
- Conductor Type
- Copper
- Number Of Conductors
- 4
- Class Code
- A40
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A40A410
- Current Rating
- 30 A
- Series
- Extra Heavy Duty
- BOX SIZE
- 12.400x12.400x12.400 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585521077
- Each - Pack Description
- Each
- NAICS Code
- 335931A107
General Literature Asset 2 Display TextPulp & Paper Solutions
Country of OriginUnited States
Width4.200 in
PerformanceElectrical - Dielectric Withstand - 1500 VRMS across contact, 4000 VRMS between conductors & enclosure;Electrical - Operating Voltage Range - 85% to 110%;Electrical - Rated Voltage - 120V AC, 240V AC & 120/240V, 3Ø 250V AC, 3Ø 120/208V AC;Electrical - Surge Withstand - 6000V impulse, 0.5 ms rise time 100kHz ringing frequency;Environmental - Construction - Industrial grade design;Environmental - Housing Rating - UL Type 4X;Environmental - Leakage Current - At 93% Humidity leakage current is zero;Environmental - Operating Temperature - -35°C to 66°C, -30°F to 150°F.;Environmental - Type - Class A GFCI
ApplicationWire Into Circuit
Conductor Size#10 AWG
Special FeaturesAuto Set- No Alarm
StrandsMulti
TypeHard Wired
Weight2.2 lb.
General Literature Asset 1 Display Text20A & 30A GFCI Protected Cord Drops
ConnectivityHard Wired
StyleAutomatic Set
Description - InvoiceHW GFCI, 30A 3-PH 250V, AUTO
Harmonization Code8536309999
MSDS FlagNo
ConstructionFabricated
Material - InsulationThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack11.75 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Lowest Level UOMEach
Certifications
