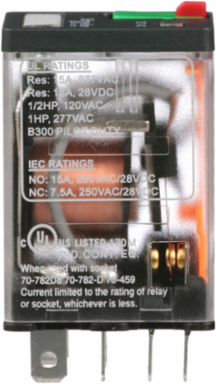

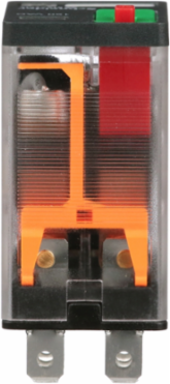

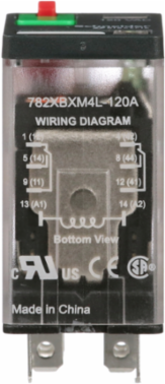

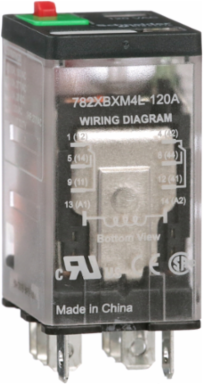

Schneider Electric 782XBXM4L-120A Power Relay, General Purpose Relays, DPDT, LED clear cover, lock push button, faston terminals, 15A, 120V AC, 2NO + 2NC

  • MPN: 782XBXM4L-120A
  • PPN: SCH-782XBXM4L-120A

CAD

$30.83

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The SE Relays 782 series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Contacts rated as 15A resistive at 277VAC, motor 1/2hp at 120VAC, 1hp at 277VAC with nominal coil voltage 120VAC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.

Documentation & Downloads

Specifications

Key Specifications

Country of OriginChina, United States
Depth27.3 mm

Complementary Attributes

Maximum Switching Voltage300 V AC UL, 300 V AC CSA250 V AC IEC
Minimum Switching Current10 mA 17 V
Maximum Horse Power Rating0.5 hp 120 V AC 50/60 Hz1 hp 277 V AC 50/60 Hz

Important Information Attributes

Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation IdCOMMERCIAL, INDUSTRIAL
Dielectric Strength2000 V AC between coil and contact, 2000 V AC between poles1500 V AC between contacts
Operating Time20 ms operating, 20 ms tripping
Certificate AgencyUL, CE, CSA
Drop-out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.05806219686162625
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.5 kg CO2 eq., 0.49500817014654386
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id4
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And Composition2 NO + 2 NC
Electrical Durability100000 cycles resistive
Mounting Supportsocket
Power Consumption In W1.15-1.15 W DC
Product Or Component Typepower relay
ReturnabilityYes
Software Versionv5.9.4
Switch FunctionDPDT
Voltage Range0.8...1.1 Un AC/DC
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit Description782 series plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life gives simultaneous control of separate circuits.This product will be in active mode at 24% in overall power consumption of 1.77 W with life span of 10 years and adhering to UL standards.
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CN
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Height Nominal39.1 mm
Connections - TerminalsFaston terminals
Package Weight(Lbs)36 g
Warranty (In Months)18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local SignallingLED, flag
Vibration Resistance+/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz)+/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz)3 gn 35-150 Hz)
[Ie] Rated Operational Current15 A at 28 V DC conforming to CSA15 A at 28 V DC (NO) conforming to IEC7.55 A at 28 V DC (NC) conforming to IEC, 15 A at 120...277 V AC conforming to UL15 A at 28 V DC conforming to UL15 A at 120/150 V AC conforming to CSA10 A at 151/277 V AC conforming to CSA, 15 A at 250 V AC (NO) conforming to IEC7.55 A at 250 V AC (NC) conforming to IEC
Carbon Footprint Of The Distribution Phase [A4]0.0047075917520425364, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.006040679548696667, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]19 kg CO2 eq., 19.156308851224104
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2403024EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionStandard
Contacts Materialsilver alloy, gold flashed
Control Typelockable test button
Mechanical Durability10000000 cycles
Power Consumption In Va1.4-1.4 VA AC
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductLegacy
Shock Resistance15 gn in operation
Sustainable PackagingYes
Total Lifecycle Carbon Footprint20 kg CO2 eq.
Pep CodeENVPEP2403024EN
Pep Verification Date2024-06-09
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Unit1
Energy Consumption On Product Lifetime In Kwh35.04
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
Width Nominal21 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490075

Environment Attributes Main

Ambient Air Temperature For Operation-40-55 °C, -40-55 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint19.720127489533013
Environmental DisclosureENVPEP2403024EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2403024EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Circularity ProfileENVEOLI2403024EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-06-09
Psr VersionPSR-0005-ed2-2016 03 29

General Attributes

Product Or Component Typepower relay
Range Of ProductLegacy

Input Attributes

Input Current15 A
Input Voltage120 V AC
Input Resistance4430 Ohm
