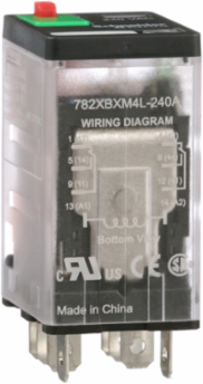

Schneider Electric 782XBXM4L-240A Power relay, SE Relays, 15A, DPDT, 240 VAC, cover with locking push button and LED
- MPN: 782XBXM4L-240A
- PPN: SCH-782XBXM4L-240A
CAD
$32.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 782 series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Contacts rated as 15A resistive at 277VAC, motor 1/2hp at 120VAC, 1hp at 277VAC with nominal coil voltage 240VAC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 27.3 mm |
|---|
Complementary Attributes
| Maximum Switching Voltage | 300 V AC UL, 300 V AC CSA250 V AC IEC |
|---|---|
| Minimum Switching Current | 10 mA 17 V |
| Maximum Horse Power Rating | 0.5 hp 120 V AC 50/60 Hz1 hp 277 V AC 50/60 Hz |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Dielectric Strength | 2000 V AC between coil and contact, 2000 V AC between poles1500 V AC between contacts |
| Operating Time | 20 ms operating, 20 ms tripping |
| Certificate Agency | UL, CE, CSA |
| Drop-out Voltage Threshold | >= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.062183 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.5 kg CO2 eq., 0.53014 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Scope | Out |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2403024EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1907 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Contacts Material | silver alloy, gold flashed |
| Control Type | lockable test button |
| Mechanical Durability | 10000000 cycles |
| Power Consumption In Va | 1.4-1.4 VA AC |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Legacy |
| Shock Resistance | 15 gn in operation |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 21 kg CO2 eq. |
| Pep Code | ENVPEP2403024EN |
| Pep Verification Date | 2024-06-09 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | referent product |
| Functional-unit Unit | 1 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; CN |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 39.1 mm |
| Connections - Terminals | Faston terminals |
| Package Weight(Lbs) | 36 g |
| Warranty (In Months) | 18 |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D] | -0.0717 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] | 9.7616 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] | 3.1568 |
| Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3] | 7.3452 |
| Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D] | -1.6828 |
| Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] | -1.1409 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 3.0043 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 485.82 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D] | -1.2869 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 9.2872 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] | 3.1568 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 54.137 |
| Customs Code | 8536490075 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Signalling | LED, flag |
| Vibration Resistance | +/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz)+/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz)3 gn 35-150 Hz) |
| [Ie] Rated Operational Current | 15 A at 28 V DC conforming to CSA15 A at 28 V DC (NO) conforming to IEC7.55 A at 28 V DC (NC) conforming to IEC, 15 A at 120...277 V AC conforming to UL15 A at 28 V DC conforming to UL15 A at 120/150 V AC conforming to CSA10 A at 151/277 V AC conforming to CSA, 15 A at 250 V AC (NO) conforming to IEC7.55 A at 250 V AC (NC) conforming to IEC |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0050417, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0064694, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 20 kg CO2 eq., 20.344 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Use Carbon Footprint | 20.344 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contacts Type And Composition | 2 NO + 2 NC |
| Electrical Durability | 100000 cycles resistive |
| Mounting Support | socket |
| Power Consumption In W | 1.15-1.15 W DC |
| Product Or Component Type | power relay |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Switch Function | DPDT |
| Voltage Range | 0.8...1.1 Un AC/DC |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | 782 series plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life gives simultaneous control of separate circuits.This product will be in active mode at 24% in overall power consumption of 1.77 W with life span of 10 years and adhering to UL standards. |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Width Nominal | 21 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6] | 20.322 |
| Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6] | 20.344 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 431.68 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D] | -1.2524 |
| Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] | 242.57 |
| Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 1.8145 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6] | 17.107 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] | 10.214 |
| Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] | 3.157 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 54.137 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 431.68 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] | -1.2524 |
| Water Use (M3 Eq) Operational Energy Use [B6] | 0.7302 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-55 °C, -40-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 20.9478341 |
| Environmental Disclosure | ENVPEP2403024EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2403024EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2403024EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-06-09 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | power relay |
|---|
| Range Of Product | Legacy |
|---|
Input Attributes
| Input Current | 15 A |
|---|---|
| Input Voltage | 240 V AC |
| Input Resistance | 17720 Ohm |
|---|
