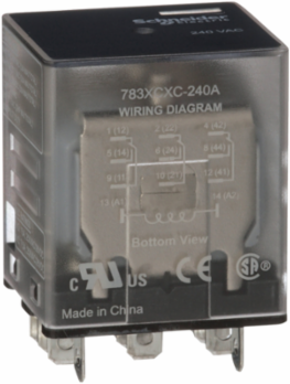

Schneider Electric 783XCXC-240A Power relay, SE Relays, 15A, 3PDT, 240 VAC, clear cover
Schneider Electric 783XCXC-240A Power relay, SE Relays, 15A, 3PDT, 240 VAC, clear cover
- MPN: 783XCXC-240A
- PPN: SCH-783XCXC-240A
- UNSPSC: 39122324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$31.38/ EA
Description
The SE Relays 783 series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover. Contacts rated as 15A resistive at 277VAC, motor 1/2hp at 120VAC, 1hp at 277VAC with nominal coil voltage 240VAC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact 3PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Features
- Switching current is ideal choice for automation panels and controls.
- Socket-mounting option simplifies installation and maintenance.
- Mechanical flag indicator displays the relay status during testing or operation.
Specifications
Conformance Attributes
- Product Certifications
- UL, CE, CSA
Complementary Attributes
- Maximum Horse Power Rating
- 0.5 hp 120 V AC 50/60 Hz, 1 hp 277 V AC 50/60 Hz
- Minimum Switching Current
- 10 mA 17 V
Maximum Switching Voltage300 V AC UL, 300 V AC CSA, 250 V AC IEC
Important Information Attributes
- Dielectric Strength
- 2000 V AC between coil and contact, 2000 V AC between poles, 1500 V AC between contacts
- Operating Time
- 20 ms operating, 20 ms tripping
- Ie Rated Operational Current2
- 15 A at 120...277 V AC conforming to UL, 15 A at 28 V DC conforming to UL, 15 A at 120/150 V AC conforming to CSA, 10 A at 151/277 V AC conforming to CSA, 15 A at 250 V AC (NO) conforming to IEC, 7.55 A at 250 V AC (NC) conforming to IEC
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Contacts Material
- silver alloy, gold flashed
- Electrical Durability
- 100000 cycles resistive
- Mechanical Durability
- 10000000 cycles
- Package Weight Lbs
- 60 g
- Power Consumption In W
- 1.5-1.5 W DC
- Product Or Component Type
- power relay
- Shock Resistance
- 15 gn in operation
- Switch Function
- 3PDT
- Connections Terminals
- Faston terminals
- Stocking Flag
- Y
- Pep Code
- ENVPEP2403024EN
- Connections Terminals3
- Faston terminals
Drop Out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC, >= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
Vibration Resistance+/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz), 3 gn 35-150 Hz)
Ie Rated Operational Current515 A at 120...277 V AC conforming to UL, 15 A at 28 V DC conforming to UL, 15 A at 120/150 V AC conforming to CSA, 10 A at 151/277 V AC conforming to CSA, 15 A at 28 V DC conforming to CSA, 15 A at 250 V AC (NO) conforming to IEC, 15 A at 28 V DC (NO) conforming to IEC, 7.55 A at 250 V AC (NC) conforming to IEC, 7.55 A at 28 V DC (NC) conforming to IEC
Local Publishable Date2026-01-12
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2403024EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardYes
Return IndicatorN
Contacts Type And Composition3 NO + 3 NC
Local Signallingflag
Mounting Supportsocket
Power Consumption In VA1.7-1.7 VA AC
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Sustainable PackagingYes
Voltage Range0.8...1.1 Un AC/DC
Medium DescPower relay, SE Relays, 15A, 3PDT, 240 VAC, clear cover
Product Kit IdentifierN
Global Commercial StatusEnd of commerc. announced
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Ambient Air Temperature For Operation
- -40-55 °C
- Circularity Profile
- ENVEOLI2403024EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2403024EN
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
Reach Free SHVCYes
China ROHS RegulationX
Ambient Air Temperature For Storage-40-85 °C
Environmental DisclosureENVPEP2403024EN
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- power relay
Input Attributes
- Input Current
- 15 A
- Input Voltage
- 240 V AC
Input Resistance11300 Ohm
Specifications
- Depth
- 27.3 mm
