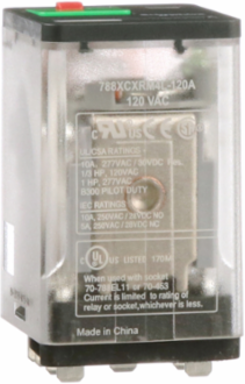

Schneider Electric 788XCXRM4L-120A General purpose relay, SE Relays, 788R, 3PDT, 10A, 120 VAC, Quick terminal, clear cover with LED, lock push button
- MPN: 788XCXRM4L-120A
- PPN: SCH-788XCXRM4L-120A
CAD
$37.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 788R series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Contacts rated as 10A resistive at 277VAC, motor 1/3hp at 120VAC, 1hp at 277VAC with nominal coil voltage 120VAC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact 3PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, United States
Depth35.5 mm
Complementary Attributes
- Maximum Switching Voltage
- 300 V UL, 300 V CSA250 V IEC
- Line Rated Current
- 10 A
- Rated Power In Hp
- 0.33 HP 120 V AC1 HP 277 V AC
Control Circuit Voltage Limits0.85...1.1 Un AC
Minimum Switching Current10 mA 17 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Signalling
- LED Cover, flag
- Certificate Agency
- UL, CSA, CE, EAC
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 4
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Material
- silver alloy, gold flashed
- Control Type
- lockable test button
- Electrical Durability
- 100000 cycles
- Mounting Support
- plug-in
- Product Availability
- Stock - Normally stocked in distribution facility
- Resistance
- 1700 Ohm
- Shock Resistance
- 10 gn
- Switch Function
- 3PDT
- Height Nominal
- 53 mm
- [Ie] Rated Operational Current
- 5 A at 28 V DC-1 (1 NC) (on resistive load) conforming to IEC10 A at 277 V AC (on resistive load) conforming to UL10 A at 30 V DC (on resistive load) conforming to UL10 A at 250 V AC-1 (1 NO) (on resistive load) conforming to IEC10 A at 28 V DC-1 (1 NO) (on resistive load) conforming to IEC5 A at 250 V AC-1 (1 NC) (on resistive load) conforming to IEC
- Connections - Terminals
- blade terminal
- Package Weight(Lbs)
- 83 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Vibration Resistance+/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation3 gn 35-150 Hz in operation
Drop-out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
Local Publishable Date2026-03-26
Stocking FlagN
Weee ScopeOut
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2403024EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionStandard
Average Consumption3 VA
Contacts Type And Composition3 NO + 3 NC
Dielectric Strength2500 V AC between coil and contact2000 V AC between poles1500 V AC between contacts
Mechanical Durability5000000 cycles
Operating Time20 ms
Product Or Component Typeplug-in electromechanical relay
ReturnabilityYes
Sustainable PackagingYes
Pep CodeENVPEP2403024EN
Width Nominal35 mm
[Ue] Rated Operational Voltage120 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490075
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-55 °C, -40-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI2403024EN
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2403024EN
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Environmental DisclosureENVPEP2403024EN
Ip Degree Of ProtectionIP40
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- plug-in electromechanical relay
