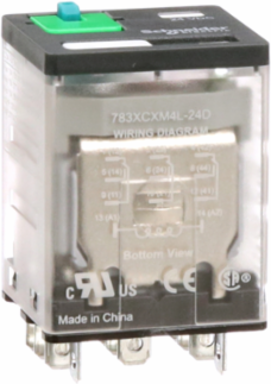

Schneider Electric 783XCXM4L-24D Power relay, SE Relays, 15A, 3PDT, 24 VDC, cover with locking push button and LED
- MPN: 783XCXM4L-24D
- PPN: SCH-783XCXM4L-24D
CAD
$37.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 783 series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Contacts rated as 15A resistive at 277VAC, motor 1/2hp at 120VAC, 1hp at 277VAC with nominal coil voltage 24VDC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact 3PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Depth27.3 mm
Complementary Attributes
- Maximum Switching Voltage
- 300 V AC UL, 300 V AC CSA250 V AC IEC
- Minimum Switching Current
- 10 mA 17 V
Maximum Horse Power Rating0.5 hp 120 V AC 50/60 Hz1 hp 277 V AC 50/60 Hz
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 2000 V AC between coil and contact, 2000 V AC between poles1500 V AC between contacts
- Operating Time
- 20 ms operating, 20 ms tripping
- Certificate Agency
- UL, CE, CSA
- Drop-out Voltage Threshold
- >= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2403024EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Standard
- Contacts Material
- silver alloy, gold flashed
- Control Type
- lockable test button
- Mechanical Durability
- 10000000 cycles
- Power Consumption In Va
- 2.05-2.05 VA AC
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Legacy
- Shock Resistance
- 15 gn in operation
- Switch Function
- 3PDT
- Pep Code
- ENVPEP2403024EN
- Width Nominal
- 21 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536410050
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local SignallingLED, flag
Vibration Resistance+/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz)+/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz)3 gn 35-150 Hz)
[Ie] Rated Operational Current15 A at 28 V DC conforming to CSA15 A at 28 V DC (NO) conforming to IEC7.55 A at 28 V DC (NC) conforming to IEC, 15 A at 120...277 V AC conforming to UL15 A at 28 V DC conforming to UL15 A at 120/150 V AC conforming to CSA10 A at 151/277 V AC conforming to CSA, 15 A at 250 V AC (NO) conforming to IEC7.55 A at 250 V AC (NC) conforming to IEC
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id4
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And Composition3 NO + 3 NC
Electrical Durability100000 cycles resistive
Mounting Supportsocket
Power Consumption In W1.85-1.85 W DC
Product Or Component Typepower relay
ReturnabilityYes
Sustainable PackagingYes
Voltage Range0.8...1.1 Un AC/DC
Height Nominal39.1 mm
Connections - TerminalsFaston terminals
Package Weight(Lbs)54.432 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-55 °C, -40-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI2403024EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Environmental DisclosureENVPEP2403024EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2403024EN
General Attributes
- Product Or Component Type
- power relay
Range Of ProductLegacy
Input Attributes
- Input Current
- 15 A
- Input Voltage
- 24 V DC
Input Resistance320 Ohm
