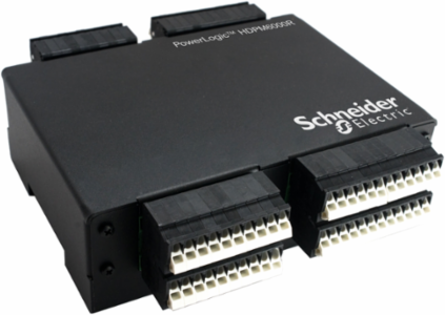

Schneider Electric METSEHDPM6R84 PowerLogic HDPM6000R retrofit module 84-circuits
- MPN: METSEHDPM6R84
- PPN: SCH-METSEHDPM6R84
CAD
$3441.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This is an integrated solution for monitoring multi-circuits and power quality by using a single meter. The meter is designed for retrofit and is used for critical power operations in data centres, facilities and energy management in buildings. Allow monitoring of loads up to 4000A with utility grade accuracy on all branch channels. This combination include 1 retrofit element for current transformers in order to measure values for 84 branch circuits. Allow measurement of energy, power demand, instantaneous power, current, harmonic, voltage and more - in total or per phases. Devices can be connected in dasy-chain thanks to CAT5 or CAT6 straight-through Ethernet cable. The HDPM6000 series can also maintain multiple, concurrent sessions with EPMS, DCIM or BMS applications via the Modbus, SNMP and BACnet IP protocols. The retrofit modules dimensions are 173mm in width connector included, 104mm in height and 173.48mm in depth. Certified for IEC61326-1 and EN61326-1:2020, related to Industrial Electromagnetic Environment. The elements can be mounted on a DIN rail thanks to the clips at the back side. The system PowerLogic HDPM6000 can help you identify increased harmonics in the rack servers to detect a potential disruption. Thanks to daisy-chain, it is possible to connect additional modules if the head unit capacity isn't exceeded.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth172.97 mm
Communications & Management Attributes
- Communication Of Data
- power quality, reading of measurements, percentage of load
- Communication Port Support
- 4 RJ45 ETHERNET
Communication Port ProtocolTCP/IP, Modbus, SNMP, BACnet
Important Information Attributes
- Energy Management
- asset management, measurement, cost management
- Mounting Mode
- clipped, by screws
- Type Of Measurement
- active energy all channelsactive power all channelsapparent power all channelsreactive power all channelscurrent per channel, current all channels, active energy per channel, active power per channel, apparent power per channel, reactive power per channel, frequency, power factor per channel, power factor average
- Carbon Footprint Of The Distribution Phase [A4]
- 0.7200365442234651, 0.7 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0217804802211408, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 170 kg CO2 eq., 169.8742199400458
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- DPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2510043EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2105
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Device Short Name
- HDPM6000R
- Measurement Category
- category III
- Noise Level
- 0-65 dB
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- metering module
- Returnability
- No
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 222 kg CO2 eq.
- Pep Code
- ENVPEP2510043EN
- Pep Verification Date
- 2025-10-23
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 104.14 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9028300000
Market Segmentdata center, industrial buildings, healthcare, non-, critical buildings
Mounting Support35 mm DIN rail, enclosure
Certificate AgencyUL Listed conforming to UL 508 A, CE, cURus
Carbon Footprint Of The End-of-life Phase [C1 To C4]4 kg CO2 eq., 4.034748634868765
Carbon Footprint Of The Manufacturing Phase [A1 To A3]47 kg CO2 eq., 46.95447582790457
Other Technical Guidehttps://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=.pdf, PLSED310185EN
Local Publishable Date2025-07-10
Stocking FlagY
Device TypeRelay, Control & Measurement - measuring, monitoring device
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Memory Capacity8 GB
Power Quality Analysistotal harmonic distortion
Product NamePowerLogic HDPM6000
RangePowerLogic
Sampling Rate128 samples/cycle
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %54
Width Nominal173.48 mm
Package Weight(Lbs)6.000 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C, -20-60 °C
- Operating Altitude
- <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2510043EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-90 %
- Pep Verification Date
- 2025-10-23
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint221.60526142726377
Environmental DisclosureENVPEP2510043EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2510043EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- metering module
ETIM
- ETIM 8
- EC001420
ETIM 9EC001420
Input Attributes
- Analogue Input Type
- external CT
Number Of Inputs84 current
